Honeywell 3G-OTH-68145 — Technical Specifications

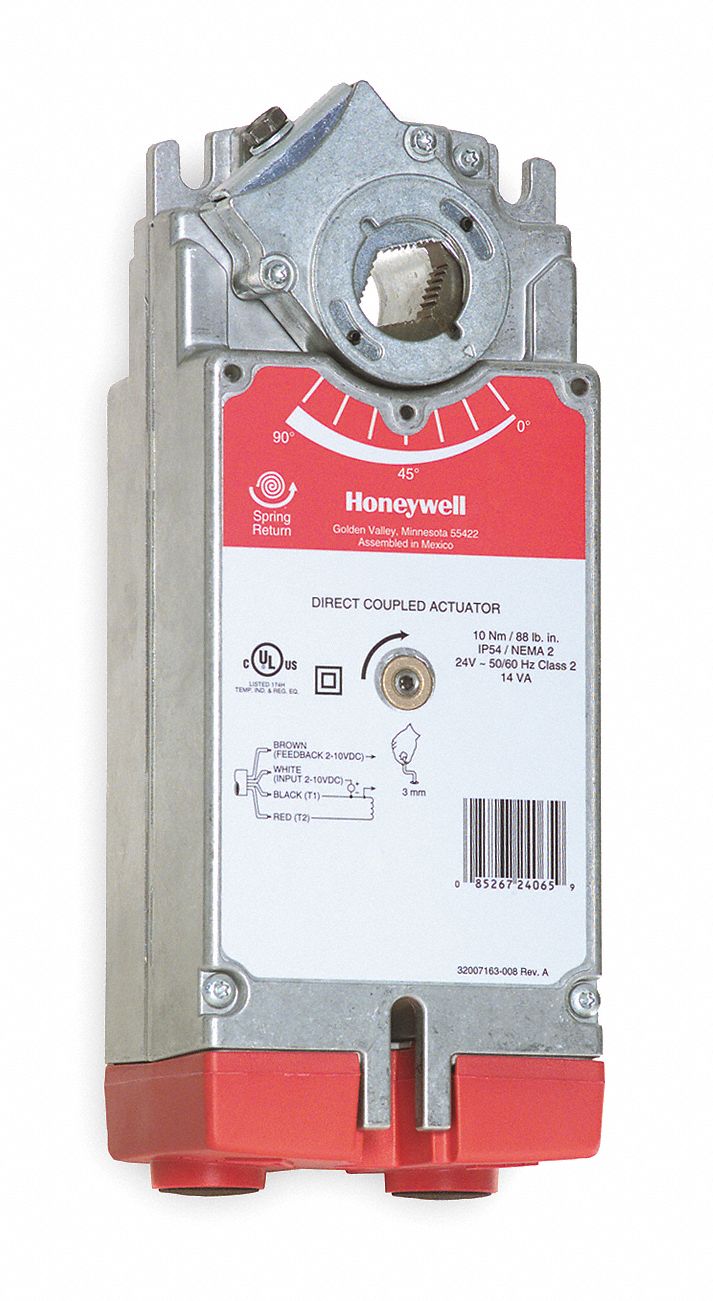

The Honeywell MS7510A2206/U is a fail-safe actuator with spring return for ball valves, butterfly valves, cage valves, dampers, and globe valves. It operates on 24V AC/DC input voltage with a 95° stroke degree and CW/CCW shaft rotation via self-centering clamping. The actuator includes an auxiliary switch and screw terminals for electrical connection, and is building automation system compatible.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Floating Point/Proportional |
| Brand | HONEYWELL |
| Shaft Type | Self-Centering Clamping |
| Input Voltage | 24V AC/DC |
| Stroke Degree | 95° |
| Shaft Rotation | CW/CCW |
| Manufacturer Part Number | MS7510A2206/U |
| Auxiliary Switch Included | Yes |
| Electrical Connection Type | Screw Terminals |
| For Use With Building Automation Systems | Building Automation System Compatible |
