Honeywell 3G-OTH-67484 — Technical Specifications

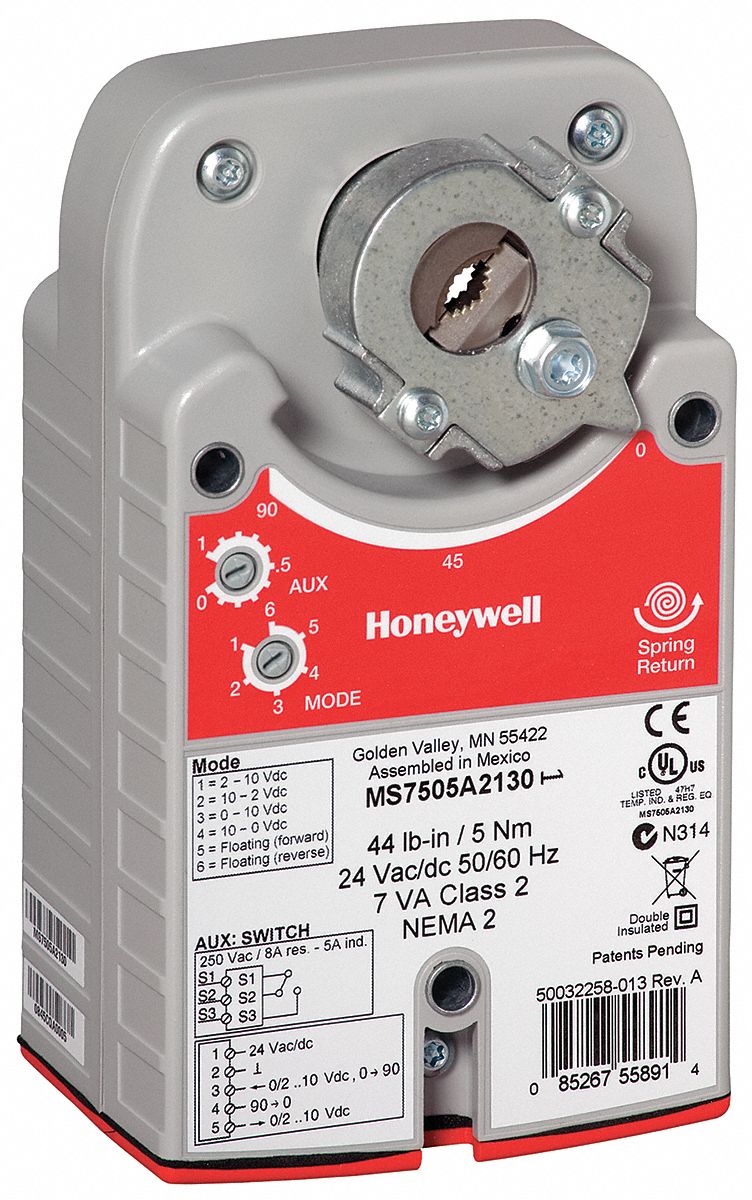

The Honeywell MS7505A2030/U is a fail-safe actuator with spring return for ball valves, butterfly valves, cage valves, dampers, and globe valves. It features a self-centering clamping shaft, 95° stroke, CW/CCW rotation, and operates on 24V AC with a 0 to 10V DC output signal. This actuator is building automation system compatible and connects via screw terminals.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Floating Point/Proportional |
| Brand | HONEYWELL |
| Shaft Type | Self-Centering Clamping |
| Input Voltage | 24V AC |
| Output Signal | 0 to 10V DC |
| Stroke Degree | 95° |
| Shaft Rotation | CW/CCW |
| Manufacturer Part Number | MS7505A2030/U |
| Auxiliary Switch Included | No |
| Electrical Connection Type | Screw Terminals |
| For Use With Building Automation Systems | Building Automation System Compatible |
