Honeywell 3G-OTH-67190 — Technical Specifications

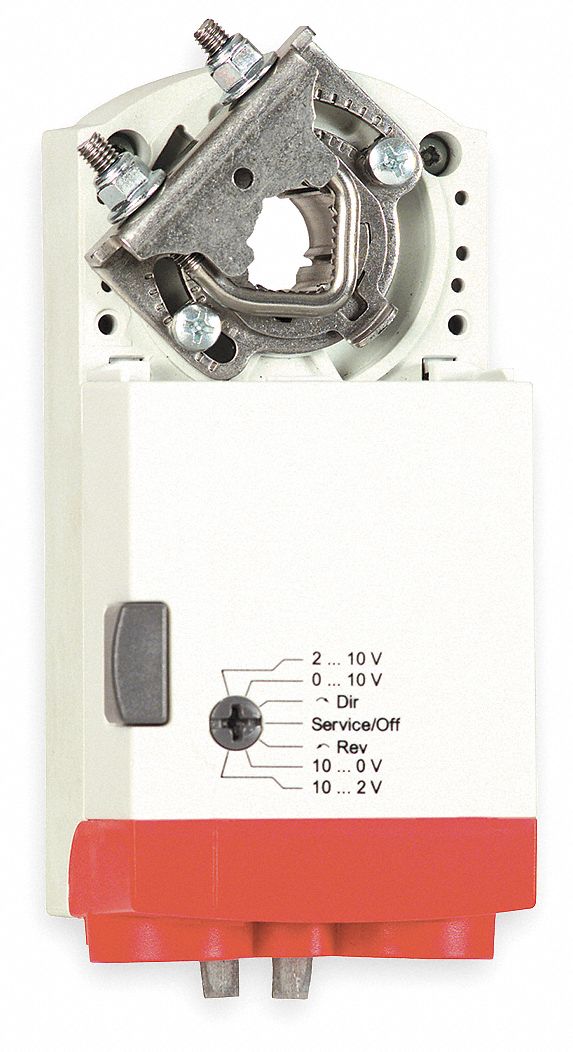

The Honeywell MN7505A2001/U is a proportional, non-spring-return actuator for air handlers, dampers, and ventilation flaps. It operates on 24V AC with a 95° stroke and CW/CCW shaft rotation via a U-bolt clamp. This hardwired actuator is compatible with building automation systems and does not include an auxiliary switch.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Proportional, Non-Spring Return |
| Brand | HONEYWELL |
| Shaft Type | U-Bolt Clamp |
| Input Voltage | 24V AC |
| Stroke Degree | 95° |
| Shaft Rotation | CW/CCW |
| Manufacturer Part Number | MN7505A2001/U |
| Auxiliary Switch Included | No |
| Electrical Connection Type | Hardwired |
| For Use With Building Automation Systems | Building Automation System Compatible |
