Harting 3G-OTH-18096 — Technical Specifications

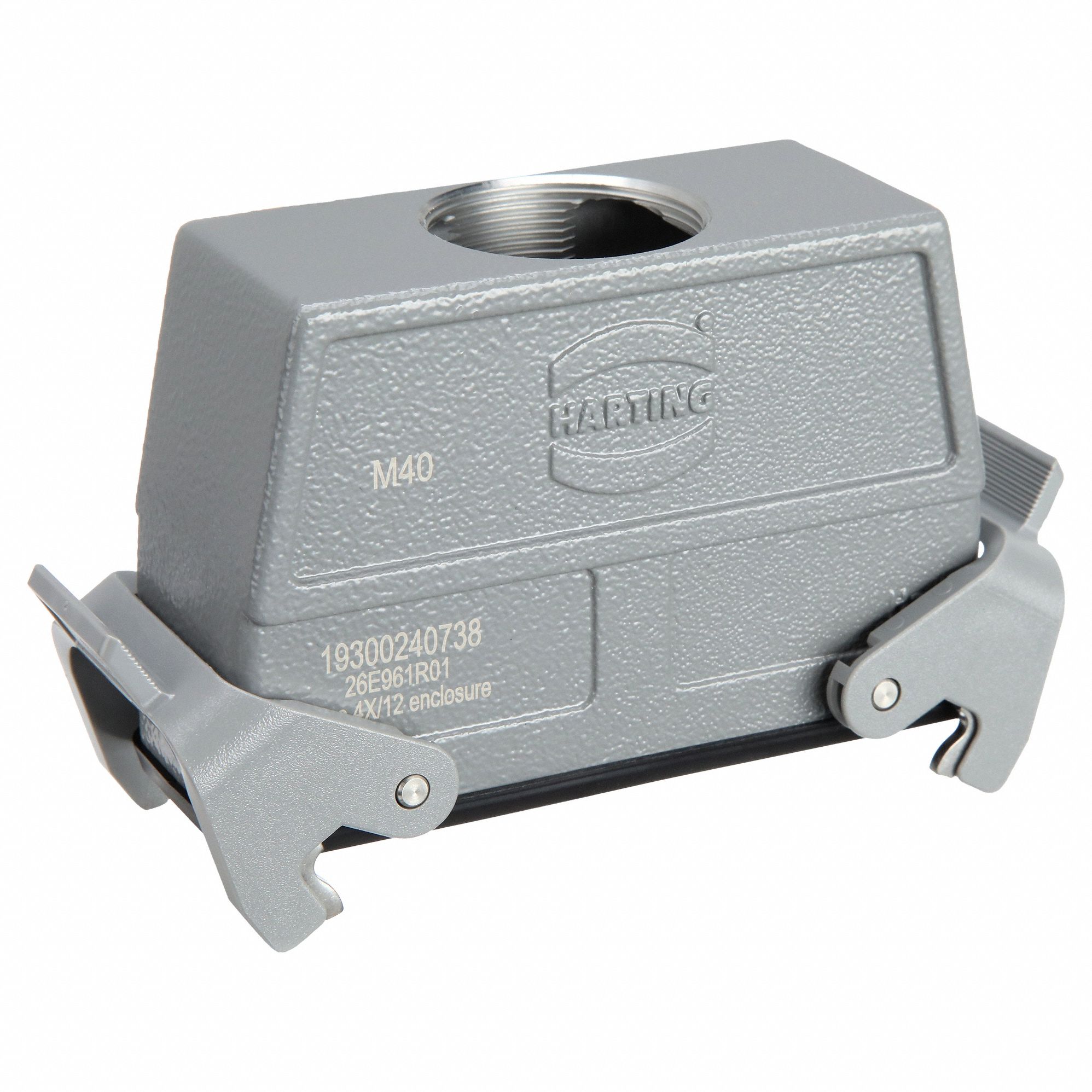

The HARTING M40 Rectangular Connector Housing, Size 24 B, is a cable-to-cable rectangular connector housing made of aluminum die-cast. It features an IP65 rating, a single-entry M40 cable entry thread, a dual-lever locking mechanism, and an NBR seal. This housing operates within a temperature range of -40 to 125 degrees C.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Cable to Cable Mount, Gray, Aluminum Die-Cast |
| Brand | HARTING |
| IP Rating | IP65 |
| Entry Type | Single-Entry |
| Locking Type | Dual Lever |
| Seal Material | NBR |
| Primary Material | Aluminum |
| Size Designation | 24 B |
| Cable Entry Thread Size | M40 |
| Manufacturer Part Number | 19300240738 |
| Operating Temperature Range | -40 to 125 Degrees C |
