Harting 3G-OTH-13941 — Technical Specifications

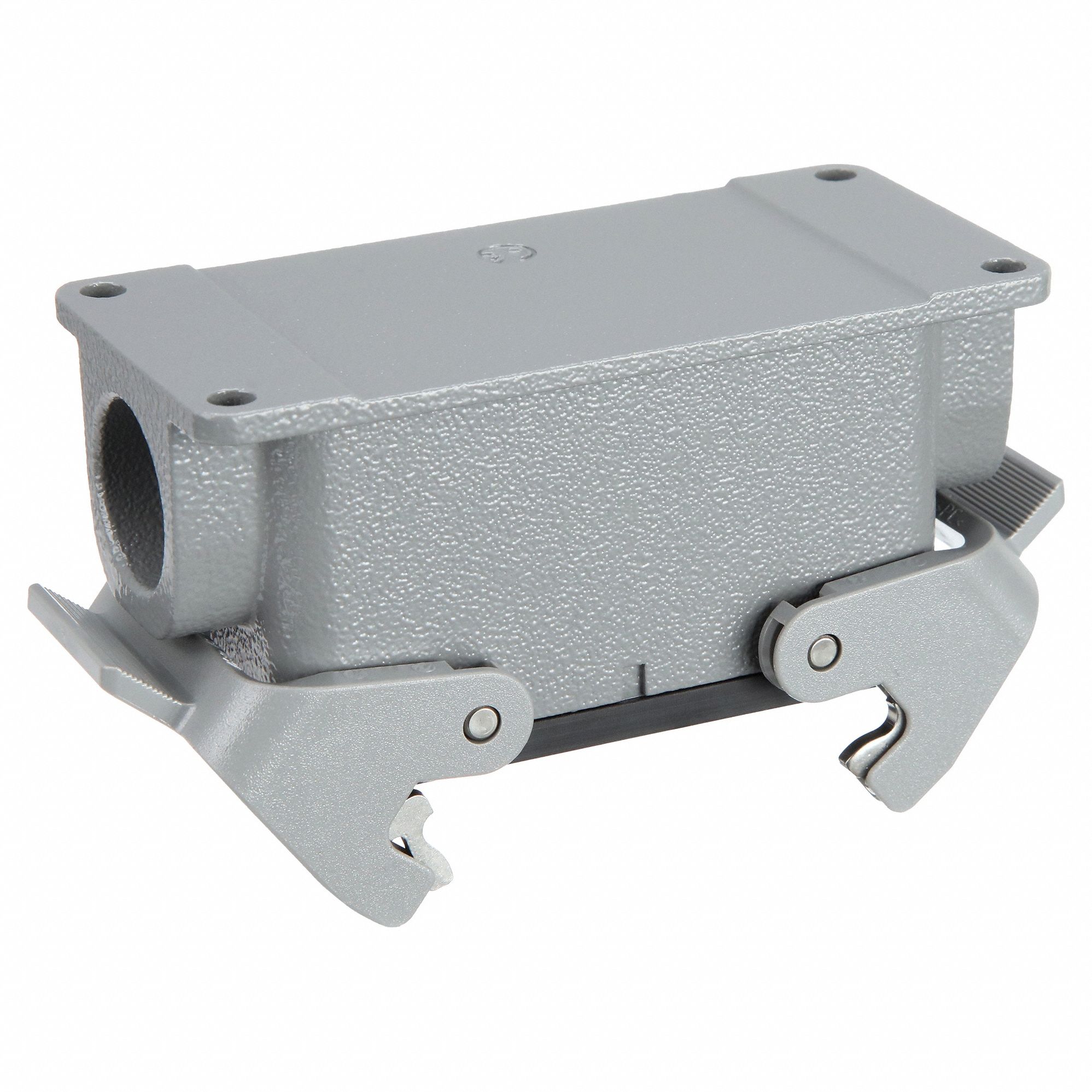

The HARTING M25 Rectangular Connector Housing is a surface-mount connector housing in Size 16 B, constructed from aluminum with an IP65 rating. It features a single-entry M25 cable entry thread, a dual-lever locking mechanism, and an NBR seal. This housing operates within a temperature range of -40 to 125 Degrees C.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Surface Mount, Gray, Aluminum Die-Cast, IP65 |
| Brand | HARTING |
| IP Rating | IP65 |
| Entry Type | Single-Entry |
| Locking Type | Dual Lever |
| Seal Material | NBR |
| Primary Material | Aluminum |
| Size Designation | 16 B |
| Cable Entry Thread Size | M25 |
| Manufacturer Part Number | 19300161231 |
| Operating Temperature Range | -40 to 125 Degrees C |
