Harris 3G-OTH-358204 — Technical Specifications

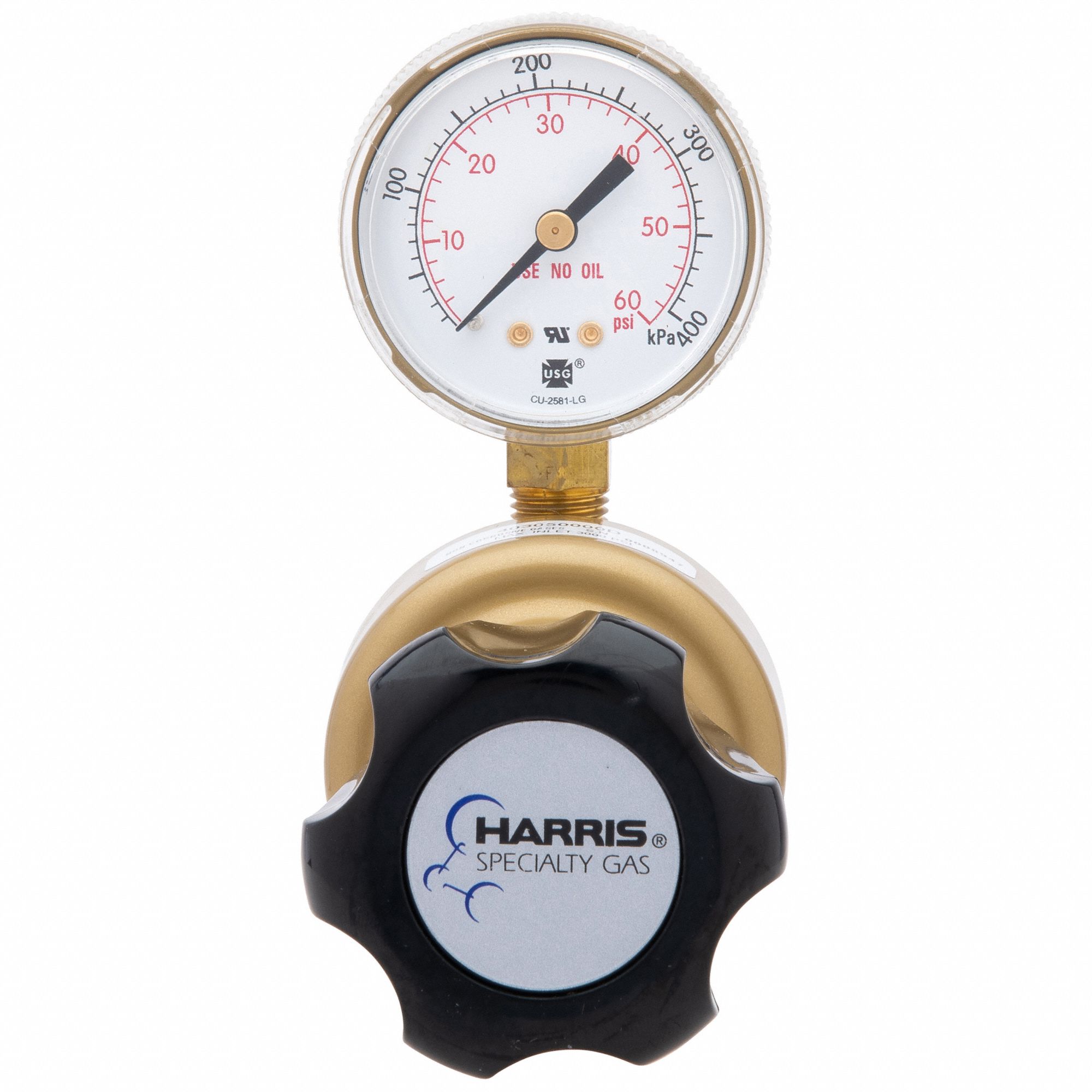

The HARRIS Gas Regulator: Single Stage is an air and inert gas regulator with 1/4" NPT F inlet and outlet connections. It features a Neoprene diaphragm and is identified by manufacturer part number 403050000D.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | 50 psig, Neoprene Diaphragm |
| Brand | HARRIS |
| NPT F Inlet | 1/4" |
| NPT F Outlet | 1/4" |
| Inlet Connection | 1/4" NPT F |
| Outlet Connection | 1/4" NPT F |
| Diaphragm Material | Neoprene |
| Manufacturer Part Number | 403050000D |
