Graco 3G-OTH-86001 — Technical Specifications

Name: Graco 3G-OTH-86001 GRACO Electric Diaphragm Pump: Stainless Steel Body, Single Phase, 100-120V AC, 1 in, PTFE Valve (MPN HE30-0504). Key specifications — Nameplate Voltage: 100-120V AC; Brand: GRACO; Surface Roughness: 20 Ra; Check Valve Material: PTFE; Diaphragm Material: PTFE with EPDM Backing; Seat Material: 316 SS.
Brand: Graco

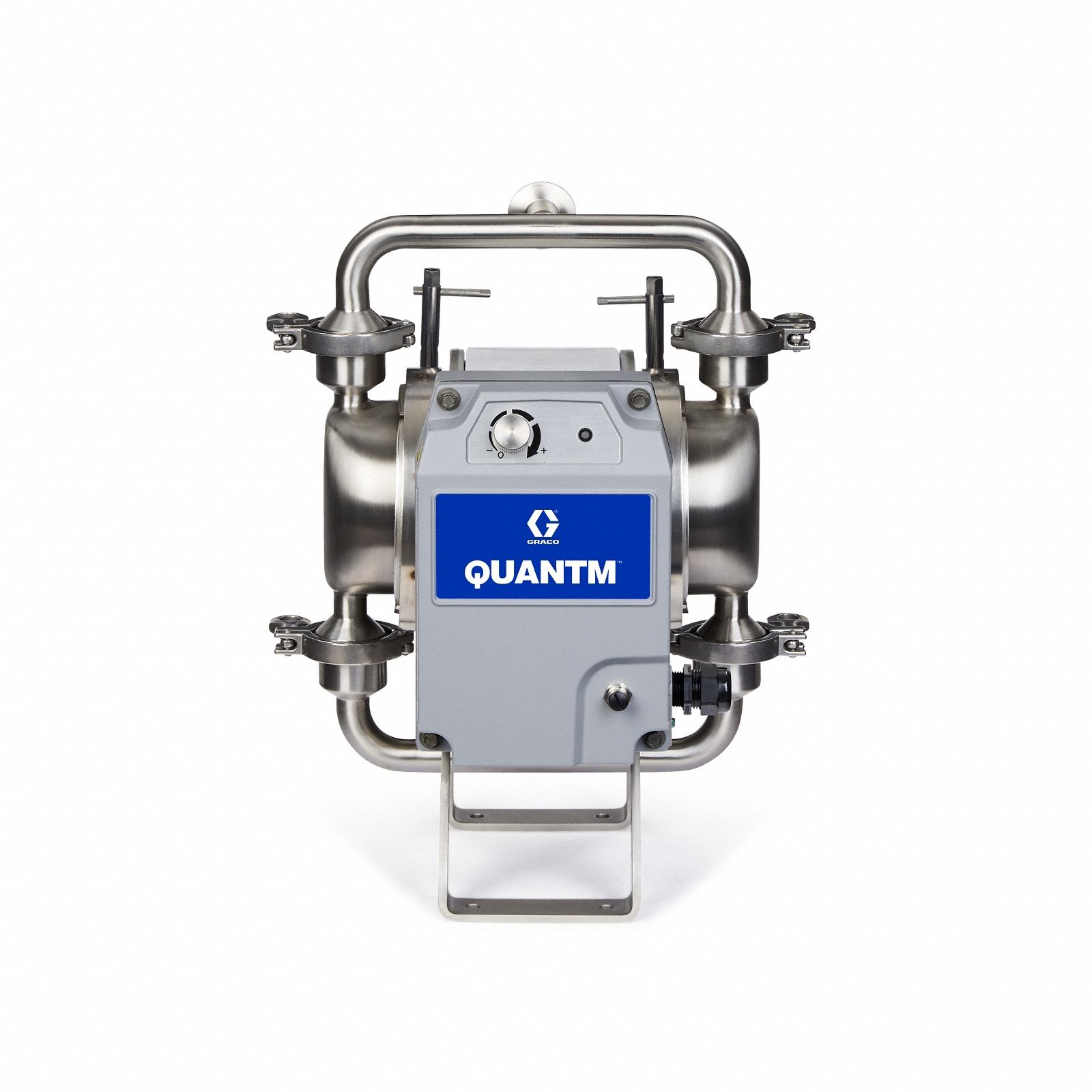

The GRACO Electric Diaphragm Pump (MPN HE30-0504) is a USP Class VI-compliant pharmaceutical-grade EODD pump with a stainless steel body. It operates on single-phase 100-120V AC power and features a 1-inch connection, PTFE check valves, and a PTFE diaphragm with EPDM backing. The pump includes 316 SS seat material and a surface roughness of 20 Ra.

View Product & Quote

Technical Specifications

Parameter	Value
AC	100-120V
Type	Single Phase, 1 in, PTFE Valve
Brand	GRACO
Seat Material	316 SS
Nameplate Voltage	100-120V AC
Surface Roughness	20 Ra
Diaphragm Material	PTFE with EPDM Backing
Check Valve Material	PTFE
Manufacturer Part Number	HE30-0504
