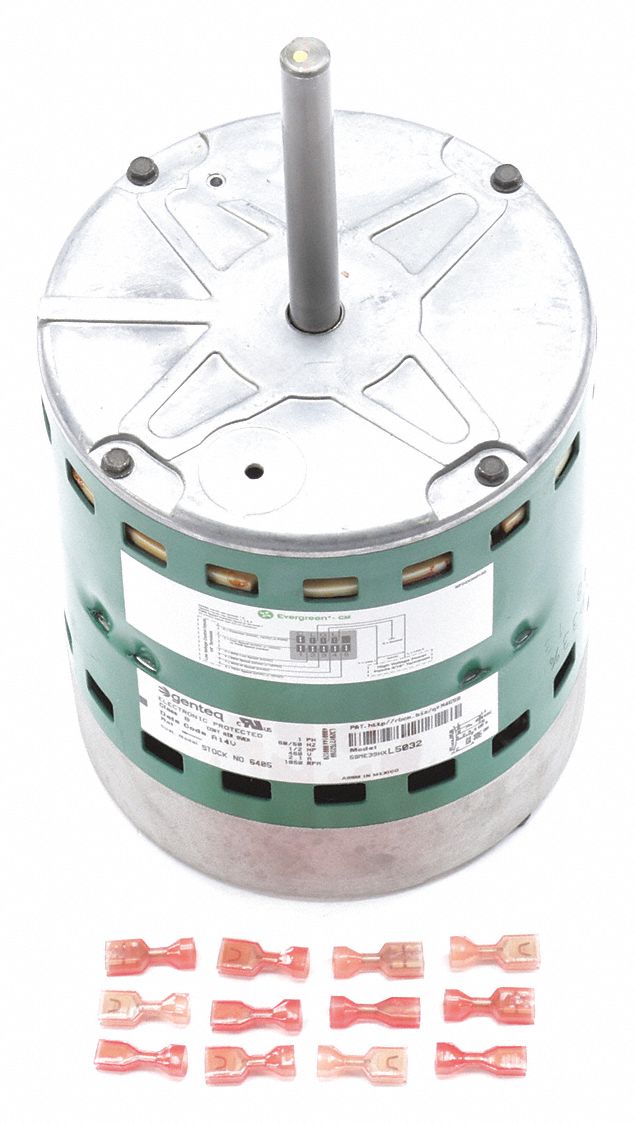

Genteq 3G-OTH-54394 — Technical Specifications
The GENTEQ Direct Drive Blower Motor: Evergreen® CM is an Evergreen® Series EC motor with a 48 frame size and Open Air Over (OAO) enclosure. It is a constant-torque ECM motor rated at 1/2 hp (370 W), 1,075 RPM, 2.01 A full load amps at 60 Hz, and 460V AC. This multi-speed motor offers 5 taps at 24 VAC and is compatible with an external PWM controller, including voltage plugs.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Belly Band, ECM, Open Air Over |
| Brand | GENTEQ |
| Features | Multi-Speed (5 Taps @ 24vac) |
| Includes | Voltage Plugs |
| Frame Size | 48 |
| ECM Motor Type | Constant Torque |
| Motor Enclosure | OAO |
| Rated Horsepower | 1/2 hp |
| Horsepower/Wattage | 1/2 hp370 W |
| External Control Type | PWM Controller |
| Nameplate RPM @ 60 Hz | 1,075 RPM |
| Full Load Amps @ 60 Hz | 2.01 A |
| Includes User Interface | No |
| Manufacturer Part Number | 6405 |
| Nameplate Voltage @ 60 Hz | 460V AC |
| External Controller Compatible | Yes |
| Compatible With External Controller | External Control Compatible |
