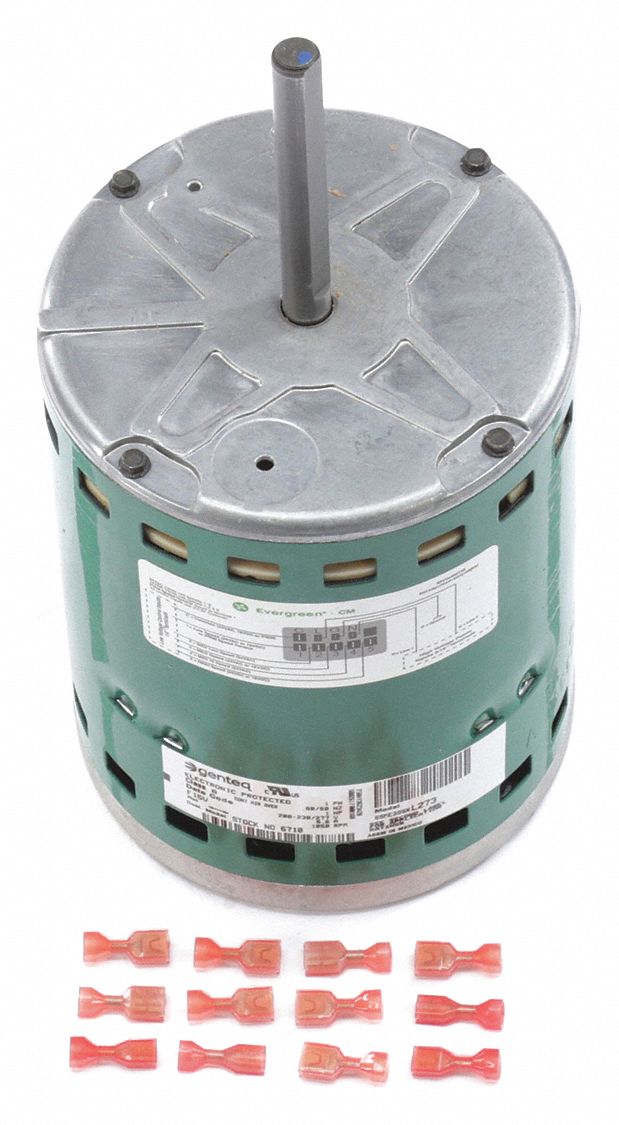

Genteq 3G-OTH-54369 — Technical Specifications
The GENTEQ Evergreen® CM is a 48-frame, 1 hp (750 W) constant-torque ECM blower motor with an Open Air Over (OAO) enclosure. It operates at 1,075 RPM on 208-230/277V AC, drawing 7.6/6.6 A full-load amps at 60 Hz. This motor features PWM Auto Recognized capability and is compatible with a Building Management System Low Voltage Controller, with optional crimp connect terminals included.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Belly Band, ECM, Open Air Over, 1 hp |
| Brand | GENTEQ |
| Features | PWM Auto Recognized |
| Includes | Optional Crimp Connect Terminals |
| Frame Size | 48 |
| ECM Motor Type | Constant Torque |
| Motor Enclosure | OAO |
| Rated Horsepower | 1 hp |
| Horsepower/Wattage | 1 hp750 W |
| External Control Type | Building Management System Low Voltage Controller |
| Nameplate RPM @ 60 Hz | 1,075 RPM |
| Full Load Amps @ 60 Hz | 7.6/6.6 A |
| Includes User Interface | No |
| Manufacturer Part Number | 6710 |
| Nameplate Voltage @ 60 Hz | 208-230/277V AC |
| External Controller Compatible | Yes |
| Compatible With External Controller | External Control Compatible |
