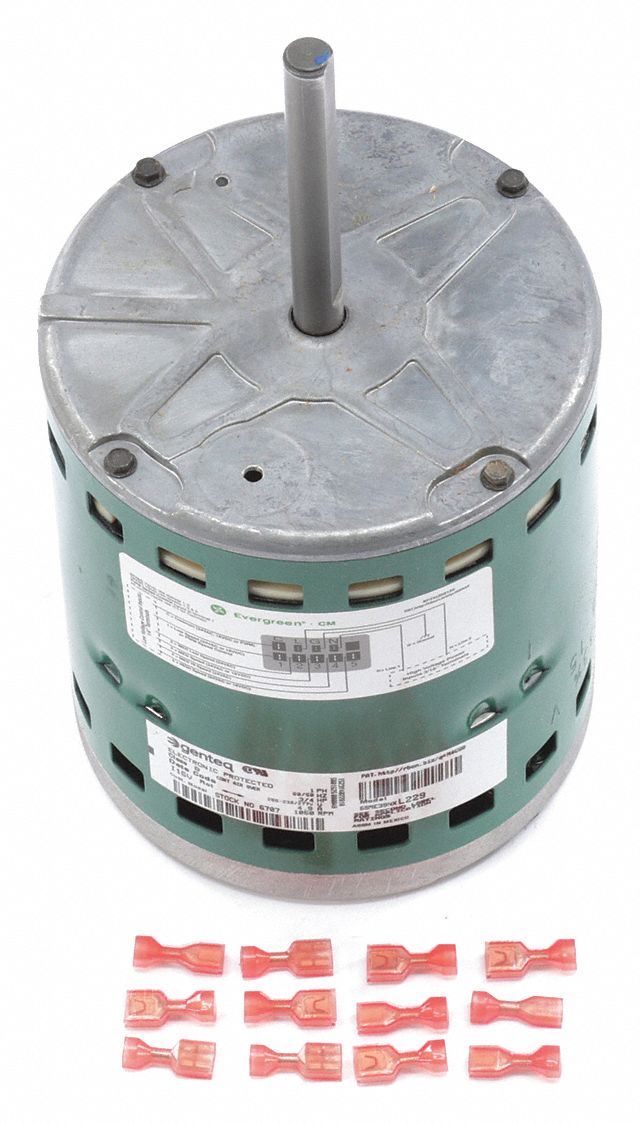

Genteq 3G-OTH-54344 — Technical Specifications
The GENTEQ Evergreen® CM is a 48-frame, constant-torque ECM blower motor (MPN 6707) with multi-speed operation (5 taps @ 24 VAC) and a nameplate rating of 3/4 hp, 560 W, 1,075 RPM at 60 Hz, 208-230/277 V AC, and 6.0/4.9 A full load amps. It features an open air over (OAO) enclosure, includes voltage plugs, and is compatible with a Building Management System low-voltage external controller.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Belly Band, ECM, Open Air Over |
| Brand | GENTEQ |
| Features | Multi-Speed (5 Taps @ 24vac) |
| Includes | Voltage Plugs |
| Frame Size | 48 |
| ECM Motor Type | Constant Torque |
| Motor Enclosure | OAO |
| Rated Horsepower | 3/4 hp |
| Horsepower/Wattage | 3/4 hp560 W |
| External Control Type | Building Management System Low Voltage Controller |
| Nameplate RPM @ 60 Hz | 1,075 RPM |
| Full Load Amps @ 60 Hz | 6.0/4.9 A |
| Includes User Interface | No |
| Manufacturer Part Number | 6707 |
| Nameplate Voltage @ 60 Hz | 208-230/277V AC |
| External Controller Compatible | Yes |
| Compatible With External Controller | External Control Compatible |
