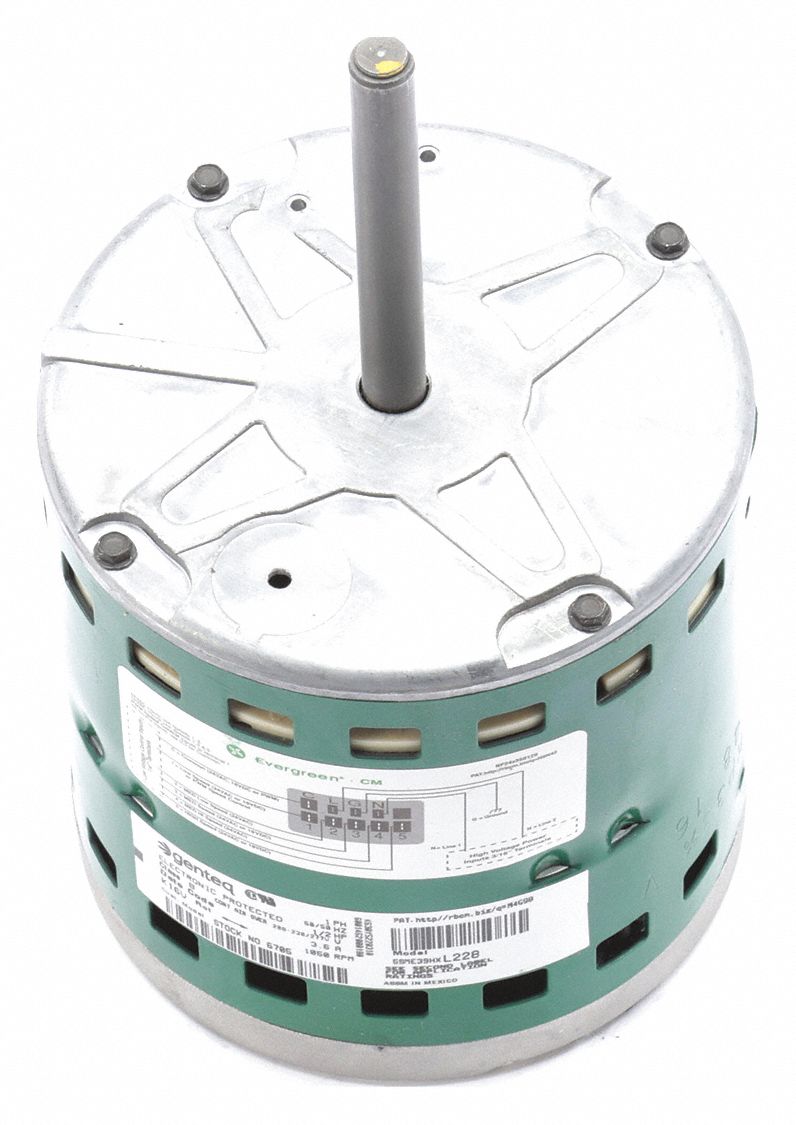

Genteq 3G-OTH-54326 — Technical Specifications
The GENTEQ Evergreen® CM is a direct-drive blower motor from the Evergreen® Series of EC motors. This constant-torque ECM features a 48 frame size, open-air-over (OAO) enclosure, and dual-voltage capability (208-230/277V AC) selectable by plug. It is rated at 1/2 hp (373 W), 1,075 RPM, and 4.1/3.6 A full-load amps at 60 Hz, and is compatible with an external PWM controller.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Belly Band, ECM, Open Air Over |
| Brand | GENTEQ |
| Features | Dual Voltage by Plug Selection |
| Includes | Optional Crimp Connect Terminals |
| Frame Size | 48 |
| ECM Motor Type | Constant Torque |
| Motor Enclosure | OAO |
| Rated Horsepower | 1/2 hp |
| Horsepower/Wattage | 1/2 hp373 W |
| External Control Type | PWM Controller |
| Nameplate RPM @ 60 Hz | 1,075 RPM |
| Full Load Amps @ 60 Hz | 4.1/3.6 A |
| Includes User Interface | No |
| Manufacturer Part Number | 6705 |
| Nameplate Voltage @ 60 Hz | 208-230/277V AC |
| External Controller Compatible | Yes |
| Compatible With External Controller | External Control Compatible |
