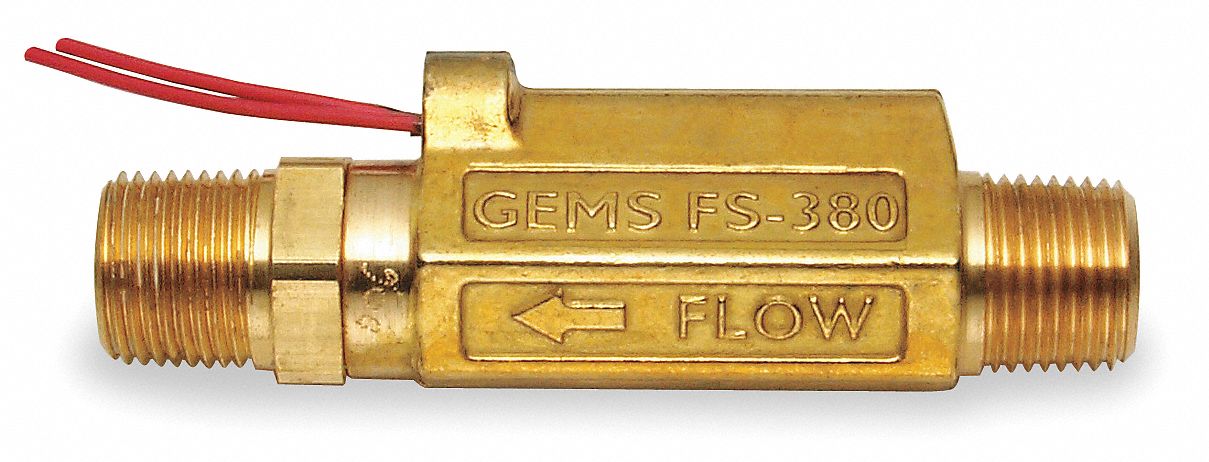

Gems Sensors 3G-OTH-90150 — Technical Specifications
The GEMS SENSORS Liquid Flow Switch is a high-pressure-rated compact piston-type flow switch. It features a fixed set point, normally open SPST switch position, and a 20 V DC contact rating. The brass-bodied unit has a 3/8 in NPT connection size and is identified by manufacturer part numbers FS-380 and 168434.
Technical Specifications
| Parameter | Value |
|---|---|
| NPT | 3/8 in |
| Type | Brass, NPT, SPST, Fixed |
| Brand | GEMS SENSORS |
| Set Point Type | Fixed |
| Connection Size | 3/8 in |
| Switch Position | Normally Open |
| Contact Rating (DC) | 20 V |
| Manufacturer Part Number | FS-380, 168434 |
