Gems Sensors 3G-OTH-90097 — Technical Specifications

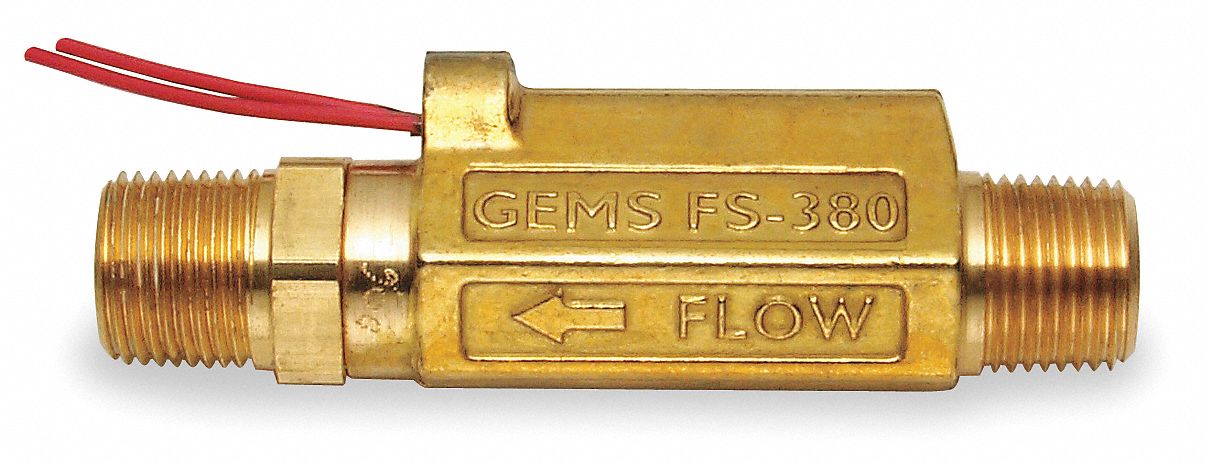

The GEMS SENSORS Liquid Flow Switch is a high-pressure-rated compact flow switch of the piston type, model FS-380 (MPN 168432). It features a fixed set point, normally open SPST switch position, and a 20 V DC contact rating, with a brass body and 3/8 in NPT connection size.
Technical Specifications
| Parameter | Value |
|---|---|
| NPT | 3/8 in |
| Type | Brass, NPT, SPST, Fixed |
| Brand | GEMS SENSORS |
| Set Point Type | Fixed |
| Connection Size | 3/8 in |
| Switch Position | Normally Open |
| Contact Rating (DC) | 20 V |
| Manufacturer Part Number | FS-380, 168432 |
