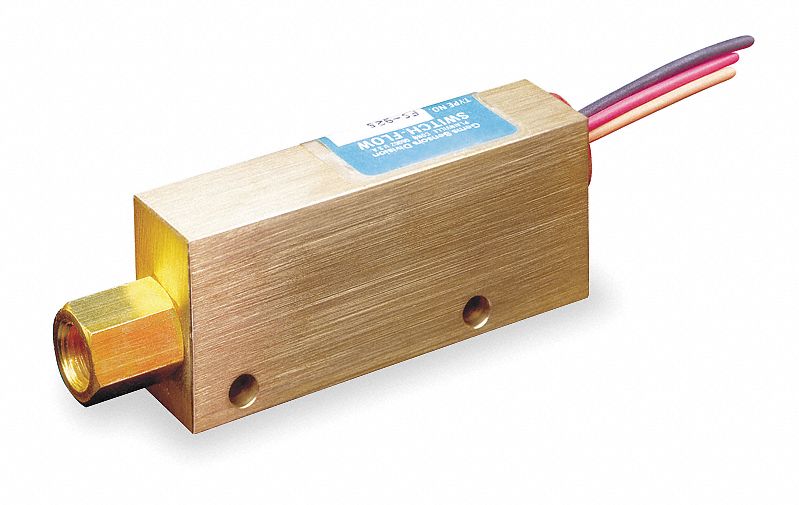

Gems Sensors 3G-OTH-90378 — Technical Specifications
The GEMS SENSORS Liquid Flow Switch: Piston is a low-flow piston flow switch with a fixed set point and normally closed switch position. It features a 20 V DC contact rating and is rated for hazardous locations Class I, Div 2, Groups A, B, C, D. The switch is constructed with 316 stainless steel and has a 1/4 in FNPT connection size.
Technical Specifications
| Parameter | Value |
|---|---|
| FNPT | 1/4 in |
| Brand | GEMS SENSORS |
| Set Point Type | Fixed |
| Connection Size | 1/4 in |
| Stainless Steel | 316 |
| Switch Position | Normally Closed |
| Contact Rating (DC) | 20 V |
| Manufacturer Part Number | FS-926, 26956 |
| Hazardous Location Specification | Class I, Div 2, Group A, B, C, D |
