Gems Sensors 3G-OTH-90366 — Technical Specifications

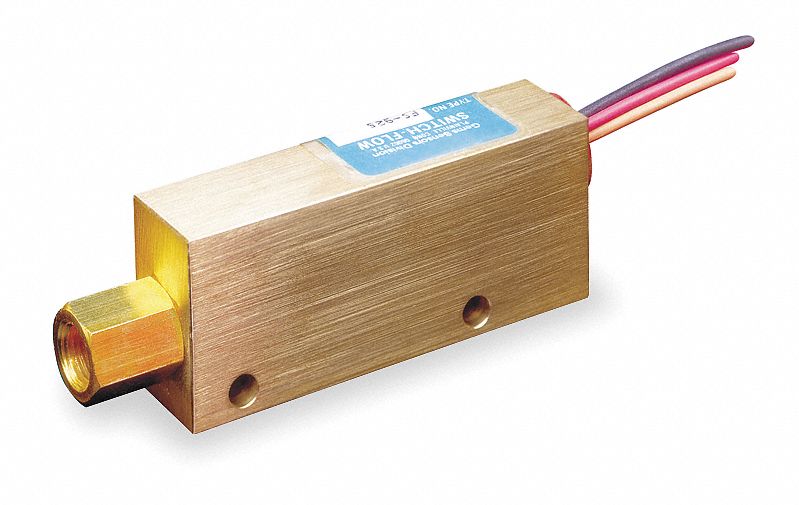

The GEMS SENSORS Liquid Flow Switch: Piston is a low-flow piston flow switch with a fixed set point and normally open switch position. It features a brass body with 1/4 in FNPT connections and an SPDT contact rated at 20 V DC. This model (MPN FS-926, 26952) is suitable for hazardous locations rated Class I, Div 2, Groups A, B, C, D.
Technical Specifications
| Parameter | Value |
|---|---|
| FNPT | 1/4 in |
| Type | Brass, FNPT, SPDT |
| Brand | GEMS SENSORS |
| Set Point Type | Fixed |
| Connection Size | 1/4 in |
| Switch Position | Normally Open |
| Contact Rating (DC) | 20 V |
| Manufacturer Part Number | FS-926, 26952 |
| Hazardous Location Specification | Class I, Div 2, Group A, B, C, D |
