Gems Sensors 3G-OTH-89657 — Technical Specifications

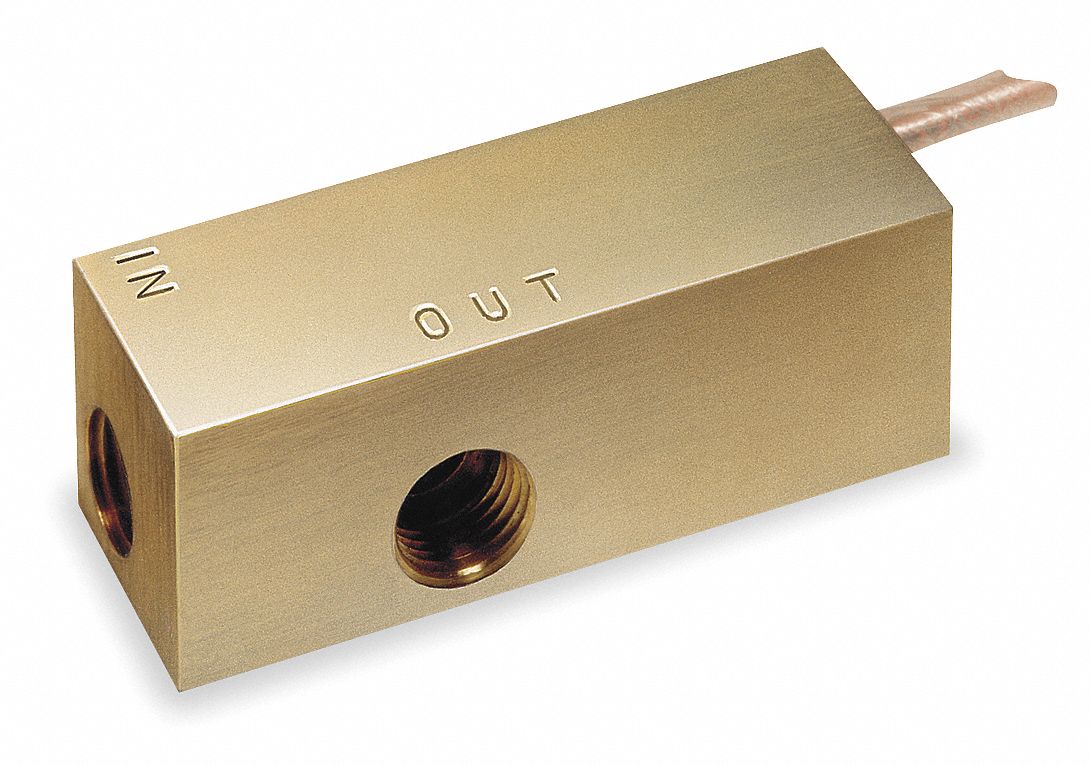

The GEMS SENSORS Liquid Flow Switch is a compact piston flow switch, model FS-927 (part number 70827), constructed with brass and featuring a 1/4 in FNPT connection. It operates with a fixed set point and a normally closed SPST switch position, with a DC contact rating of 20 V.
Technical Specifications
| Parameter | Value |
|---|---|
| FNPT | 1/4 in |
| Type | Brass, FNPT, SPST |
| Brand | GEMS SENSORS |
| Set Point Type | Fixed |
| Connection Size | 1/4 in |
| Switch Position | Normally Closed |
| Contact Rating (DC) | 20 V |
| Manufacturer Part Number | FS-927, 70827 |
