Gems Sensors 3G-OTH-89273 — Technical Specifications

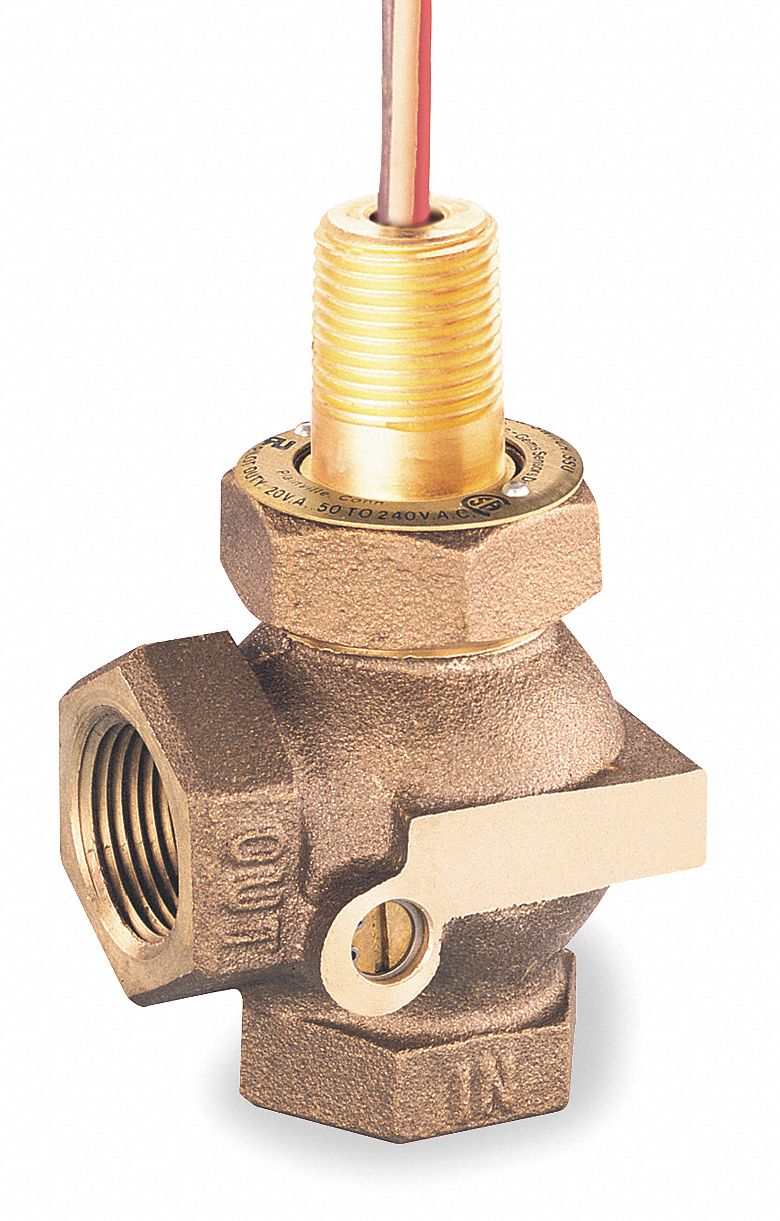

The GEMS SENSORS Liquid Flow Switch: Piston is an adjustable set point flow switch with a normally open switch position and a 20 V DC contact rating. This bronze unit features a 3/4 in FNPT connection and SPDT switching, and is rated for hazardous locations per Class I, Div 2, Groups A, B, C, D (MPN FS-400, 26601).
Technical Specifications
| Parameter | Value |
|---|---|
| FNPT | 3/4 in |
| Type | Bronze, FNPT, SPDT |
| Brand | GEMS SENSORS |
| Set Point Type | Adjustable |
| Connection Size | 3/4 in |
| Switch Position | Normally Open |
| Contact Rating (DC) | 20 V |
| Manufacturer Part Number | FS-400, 26601 |
| Hazardous Location Specification | Class I, Div 2, Group A, B, C, D |
