Gates 3G-OTH-125911 — Technical Specifications

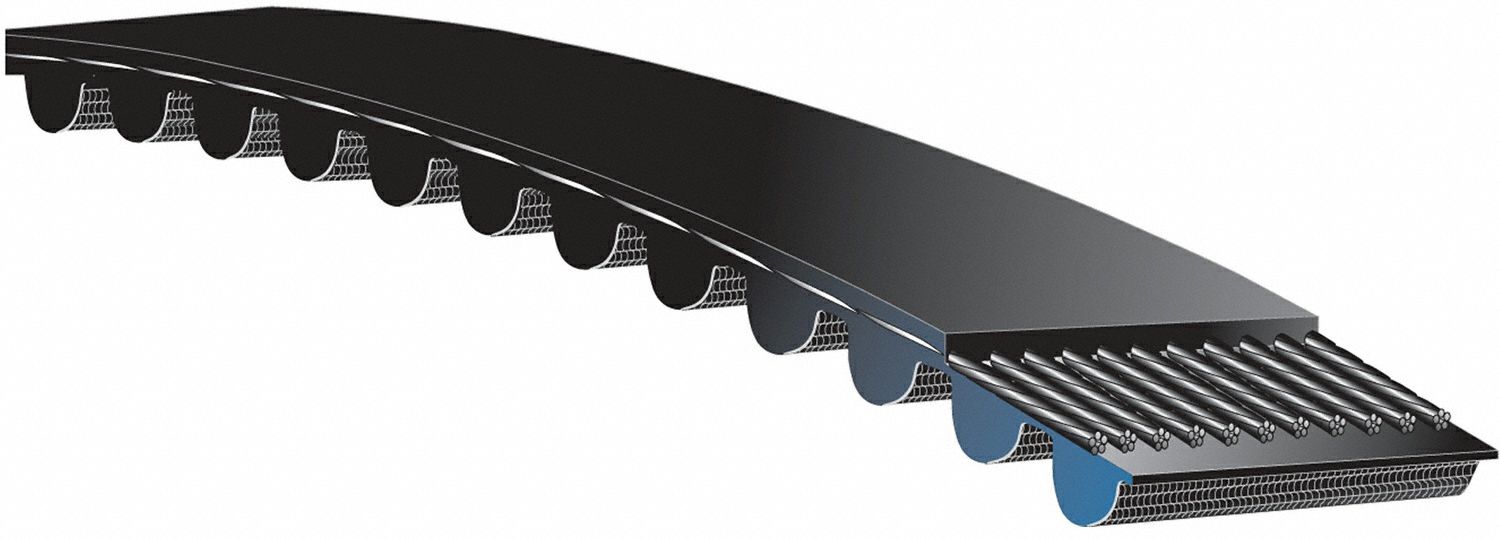

The GATES Timing Belt: One Side is an HTD Section Timing Belt, part of the PowerGrip® HTD® series. It features a curvilinear design with a 5 mm pitch and 9 mm top width, identified by Industry Number 285-5M-09. This single-sided belt is designed for synchronous power transmission applications.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Curvilinear, PowerGrip® HTD®, 285-5M-09, HTD |
| Brand | GATES |
| Pitch | 5 mm |
| Top Wd | 9 mm |
| Industry Number | 285-5M-09 |
| Manufacturer Part Number | 285-5M-09 |
