Gates 3G-OTH-124933 — Technical Specifications

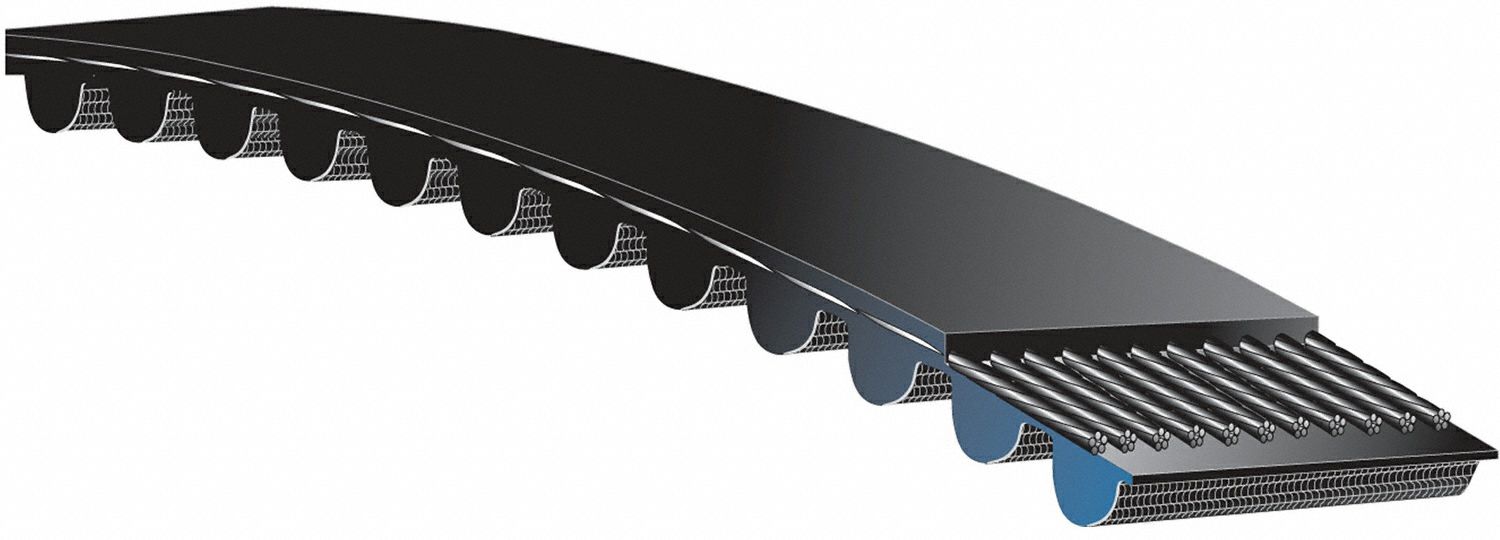

The GATES Timing Belt: One Side is an HTD Section Timing Belt from the PowerGrip® HTD® series, featuring a curvilinear tooth profile with a 5 mm pitch and 9 mm top width. Identified by Industry Number 480-5M-09, this single-sided belt is designed for synchronous power transmission applications.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Curvilinear, PowerGrip® HTD®, 480-5M-09, HTD |
| Brand | GATES |
| Pitch | 5 mm |
| Top Wd | 9 mm |
| Industry Number | 480-5M-09 |
| Manufacturer Part Number | 480-5M-09 |
