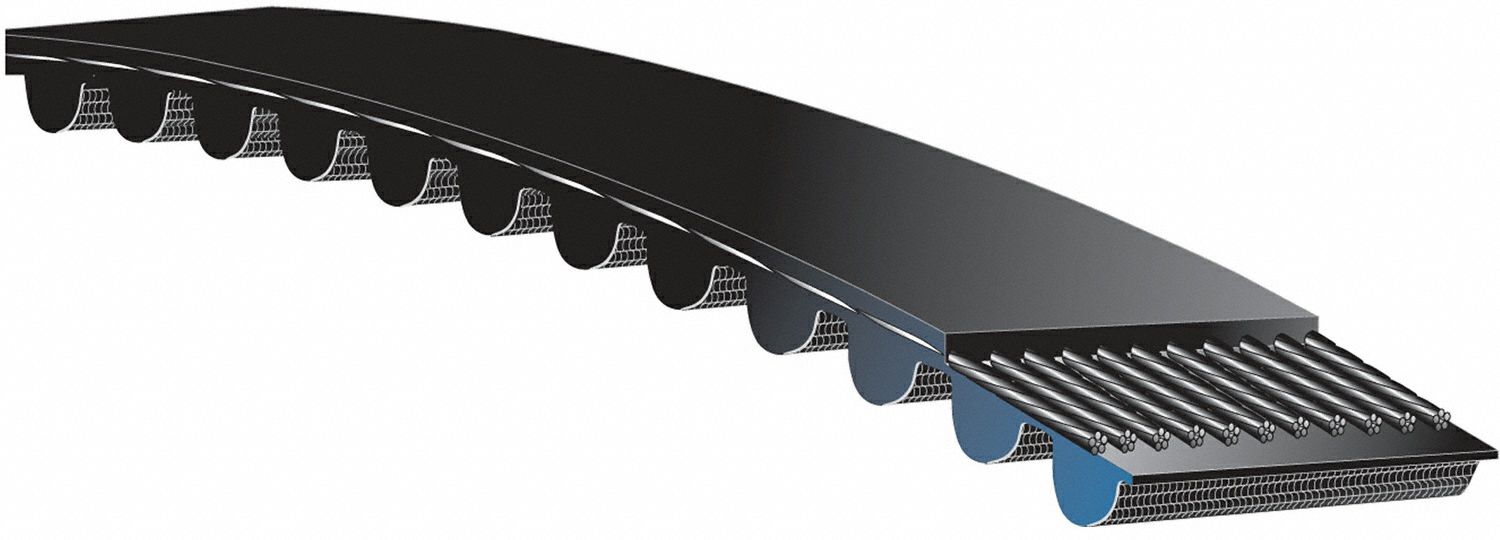

Gates 3G-OTH-115720 — Technical Specifications

Name: Gates 3G-OTH-115720 GATES Timing Belt: One Side, Curvilinear, PowerGrip® HTD®, 5 mm Pitch, 9 mm Top Wd, 255-5M-09, HTD. Key specifications — Industry Number: 255-5M-09; Brand: GATES.
Brand: Gates

The GATES Timing Belt: One Side is an HTD Section Timing Belt from the PowerGrip® HTD® line, featuring a curvilinear tooth profile with a 5 mm pitch and 9 mm top width. Identified by Industry Number 255-5M-09 and Manufacturer Part Number 255-5M-09, this belt is designed for synchronous power transmission applications.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Curvilinear, PowerGrip® HTD®, 255-5M-09, HTD
Brand	GATES
Pitch	5 mm
Top Wd	9 mm
Industry Number	255-5M-09
Manufacturer Part Number	255-5M-09
