Franklin Electric 3G-OTH-84883 — Technical Specifications

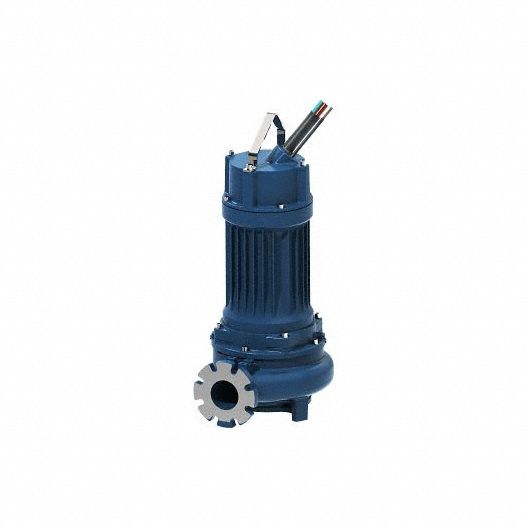

Name: Franklin Electric 3G-OTH-84883 FRANKLIN ELECTRIC Sewage Ejector Pump: Cast Iron, Three Phase, 5 hp, 200 to 230V AC, 49 ft Max. Head (MPN 4NC-523P3-182). Key specifications — Impeller Material: Ductile Iron; Rated Voltage: 200 to 230V AC; Brand: FRANKLIN ELECTRIC; Discharge Orientation: Horizontal; Switch: Not Included.
Brand: Franklin Electric

The FRANKLIN ELECTRIC Sewage Ejector Pump is a cast-iron, non-clog sewage ejector pump with a three-phase, 5 hp motor rated for 200 to 230V AC. It features a ductile iron impeller and a horizontal discharge orientation, with a maximum head of 49 ft. The switch is not included.

View Product & Quote

Technical Specifications

Parameter	Value
AC	200 to 230V
Type	Three Phase, 5 hp
Brand	FRANKLIN ELECTRIC
Switch	Not Included
Max. Head	49 ft
Rated Voltage	200 to 230V AC
Impeller Material	Ductile Iron
Discharge Orientation	Horizontal
Manufacturer Part Number	4NC-523P3-182
