Franklin Electric 3G-OTH-85029 — Technical Specifications

Name: Franklin Electric 3G-OTH-85029 FRANKLIN ELECTRIC Sewage Ejector Pump: Cast Iron, Three Phase, 5 hp, 575V AC, 58 ft Max. Head, 60 Hz (MPN 3NC-557P3-196). Key specifications — Impeller Material: Ductile Iron; Rated Voltage: 575V AC; Brand: FRANKLIN ELECTRIC; Discharge Orientation: Horizontal; Switch: Not Included.
Brand: Franklin Electric

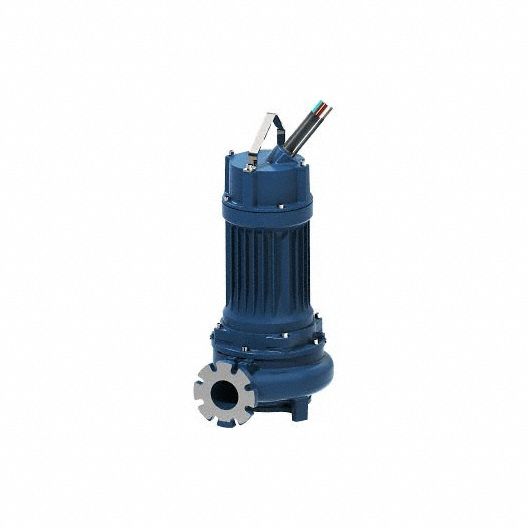

The FRANKLIN ELECTRIC Sewage Ejector Pump is a cast-iron, non-clog sewage ejector pump with a horizontal discharge orientation. It is a three-phase, 5 hp unit rated at 575V AC and 60 Hz, with a maximum head of 58 ft. The impeller is made of ductile iron, and the pump does not include a switch.

View Product & Quote

Technical Specifications

Parameter	Value
AC	575V
Type	Three Phase, 5 hp, 60 Hz
Brand	FRANKLIN ELECTRIC
Switch	Not Included
Max. Head	58 ft
Rated Voltage	575V AC
Impeller Material	Ductile Iron
Discharge Orientation	Horizontal
Manufacturer Part Number	3NC-557P3-196
