Fostoria 3G-OTH-62544 — Technical Specifications

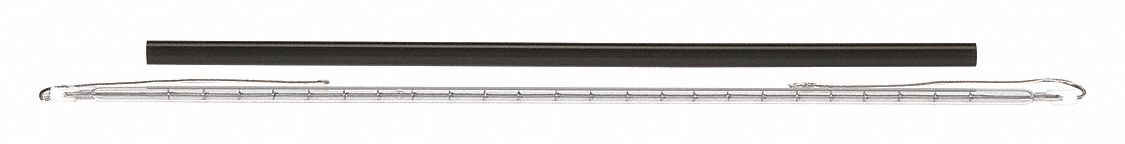

The FOSTORIA Electric Infrared Tubular Heater Element (MPN AGS3648) is a 3,650 W replacement element designed for use with the 463 and MM-46A heaters. It operates at 480V AC, features a clear finish, and includes 5-1/2 in wire leads with a 5-1/2 in pigtail connection. The element measures 5/16 in x 41-11/16 in and is intended for horizontal burn mounting.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | No. 462/MM-46A |
| Brand | FOSTORIA |
| Color | Clear |
| Output | 3,650 W |
| Voltage | 480V AC |
| Includes | 5-1/2 in Wire Leads |
| For Use With | 463 |
| Product Type | Electric Infrared Tubular Heater Element |
| Connection Type | 5-1/2 in Pigtail |
| Heater Mounting Position | Horizontal Burn |
| Manufacturer Part Number | AGS3648 |
| Overall Dimensions - Dia. X L | 5/16 in x 41-11/16 in |
