Fostoria 3G-OTH-63225 — Technical Specifications

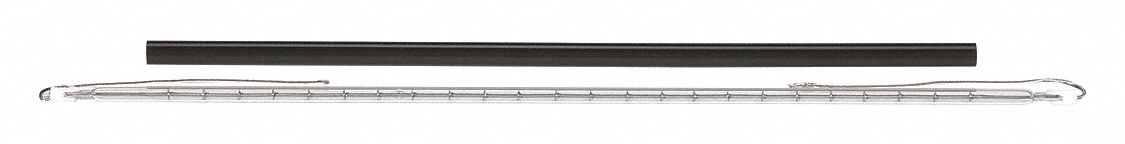

The FOSTORIA Electric Infrared Tubular Heater Element (MPN AGS2520) is a 208V AC tubular element designed for use with the 343 heater. It features a 5-1/2 in pigtail connection, a clear finish, and a horizontal burn mounting position. This 2,500 W, 12 A element includes a sleeve and measures 5/16 in diameter by 28-11/16 in length.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | No. 342/MM-33A, 12 A |
| Brand | FOSTORIA |
| Color | Clear |
| Output | 2,500 W |
| Voltage | 208V AC |
| Includes | Sleeve |
| For Use With | 343 |
| Product Type | Electric Infrared Tubular Heater Element |
| Connection Type | 5-1/2 in Pigtail |
| Heater Mounting Position | Horizontal Burn |
| Manufacturer Part Number | AGS2520 |
| Overall Dimensions - Dia. X L | 5/16 in x 28-11/16 in |
