Fostoria 3G-OTH-62851 — Technical Specifications

Name: Fostoria 3G-OTH-62851 FOSTORIA Electric Infrared Tubular Heater Element: For 223/Mfr. No. 222/MM-24A, 1,600 W Output (MPN AGS1620). Key specifications — Connection Type: 5-1/2 in Pigtail; Color: Clear; Heater Mounting Position: Horizontal Burn; Product Type: Electric Infrared Tubular Heater Element; For Use With: 223; Voltage: 208V AC; Includes: 5-1/2 in Wire Leads; Brand: FOSTORIA.
Brand: Fostoria

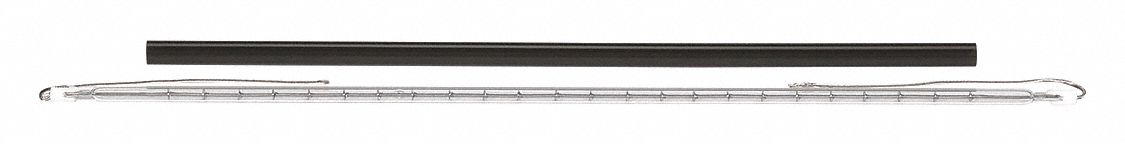

The FOSTORIA Electric Infrared Tubular Heater Element (MPN AGS1620) is a 1,600 W output tubular element designed for use with the 223 heater. It operates at 208V AC with a 5-1/2 in pigtail connection and 5-1/2 in wire leads, featuring a clear color and a horizontal burn mounting position. The element measures 5/16 in diameter by 19-11/16 in length.

View Product & Quote

Technical Specifications

Parameter	Value
Type	No. 222/MM-24A
Brand	FOSTORIA
Color	Clear
Output	1,600 W
Voltage	208V AC
Includes	5-1/2 in Wire Leads
For Use With	223
Product Type	Electric Infrared Tubular Heater Element
Connection Type	5-1/2 in Pigtail
Heater Mounting Position	Horizontal Burn
Manufacturer Part Number	AGS1620
Overall Dimensions - Dia. X L	5/16 in x 19-11/16 in
