Fostoria 3G-OTH-65740 — Technical Specifications

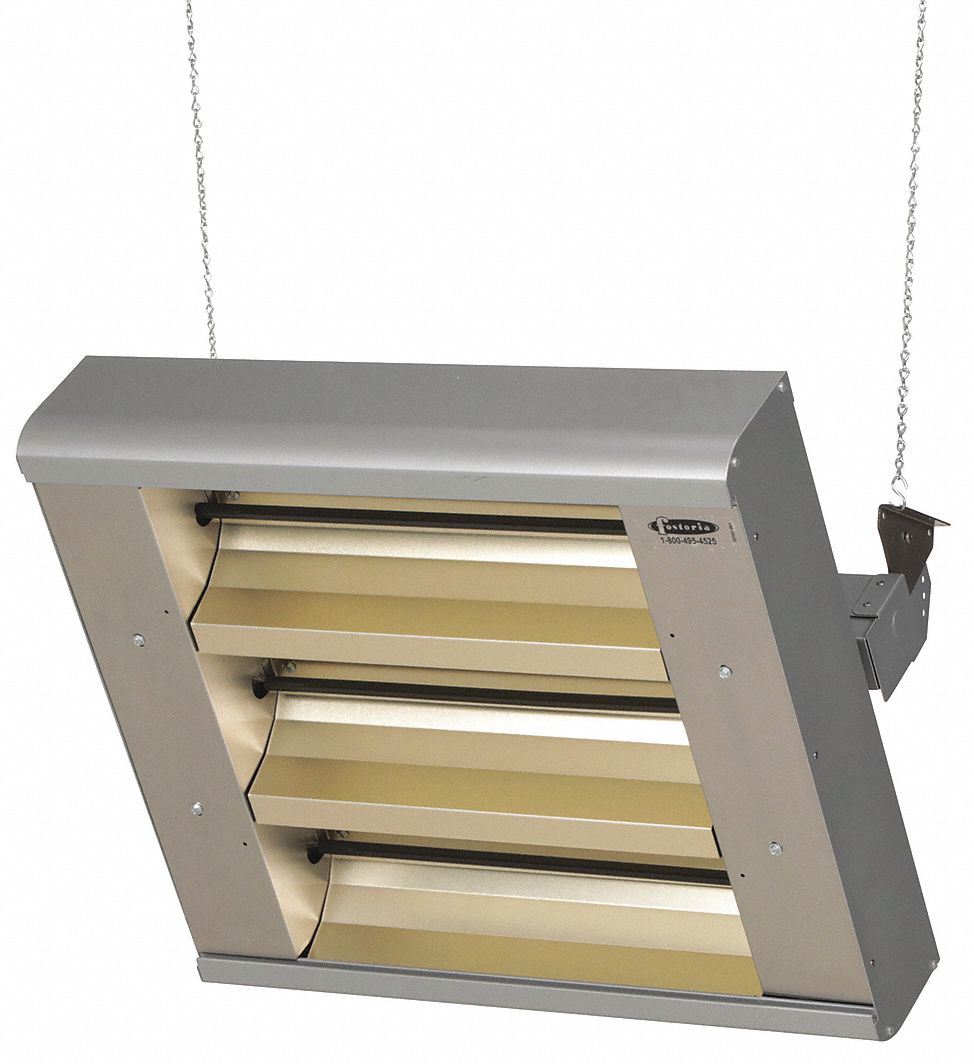

The FOSTORIA 223-30-THA-208V is a 4800W electric infrared heater designed for indoor/outdoor suspended ceiling mounting. It operates on 208V AC, 1 or 3 phase, with a hardwired connection and a quartz lamp element. The unit features a silver aluminum housing and measures 24 in x 21-1/2 in x 11 in.
Technical Specifications
| Parameter | Value |
|---|---|
| AC | 208V |
| Type | 1 or 3 Phase, Hardwired, Quartz Lamp |
| Brand | FOSTORIA |
| Phase | 1 or 3 |
| Voltage | 208V AC |
| Element Type | Quartz Lamp |
| Housing Color | Silver |
| Wattage Output | 4800W |
| Housing Material | Aluminum |
| Electrical Connection | Hardwired |
| Manufacturer Part Number | 223-30-THA-208V |
| Overall Dimensions - L X W X D | 24 in x 21-1/2 in x 11 in |
