Fostoria 3G-OTH-62812 — Technical Specifications

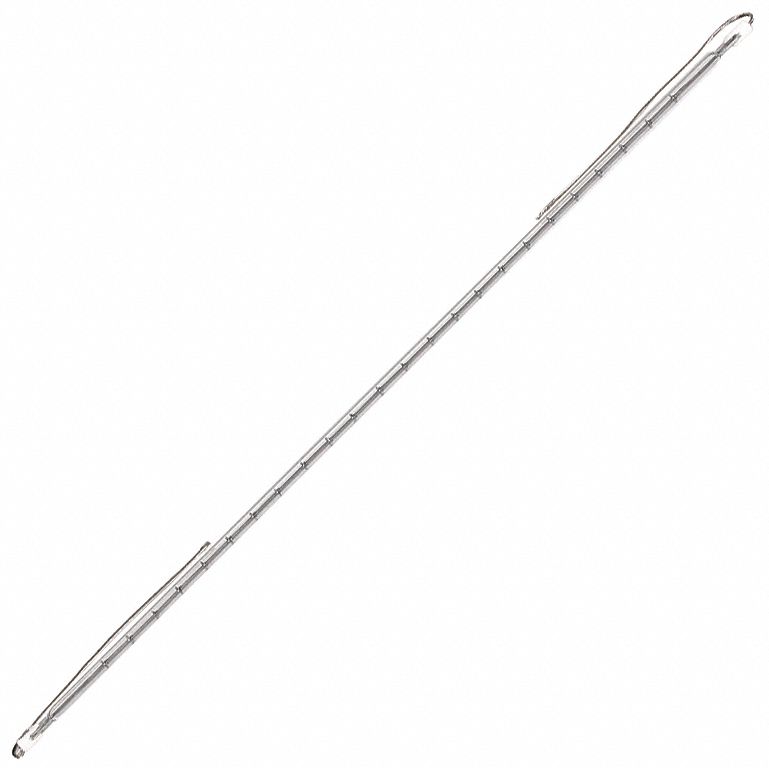

The FOSTORIA Electric Infrared Tubular Heater Element (MPN 631-38579) is a 3,800 W output tubular element designed for use with the 463 and 462/MM-46A heaters. It operates at 600V AC, features a clear finish, and includes 5-1/2 in wire leads with a 5-1/2 in pigtail connection. The element has overall dimensions of 3/8 in x 41-11/16 in and is intended for horizontal burn mounting.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | No. 462/MM-46A |
| Brand | FOSTORIA |
| Color | Clear |
| Output | 3,800 W |
| Voltage | 600V AC |
| Includes | 5-1/2 in Wire Leads |
| For Use With | 463 |
| Product Type | Electric Infrared Tubular Heater Element |
| Connection Type | 5-1/2 in Pigtail |
| Heater Mounting Position | Horizontal Burn |
| Manufacturer Part Number | 631-38579 |
| Overall Dimensions - Dia. X L | 3/8 in x 41-11/16 in |
