Fostoria 3G-OTH-63010 — Technical Specifications

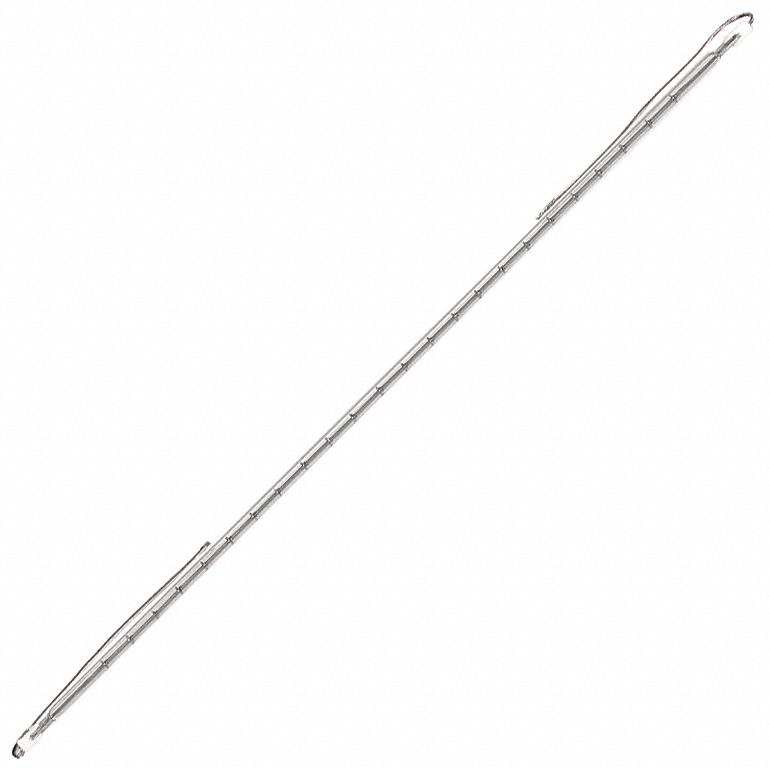

The FOSTORIA Electric Infrared Tubular Heater Element (MPN 631-25609) is a 2,500 W output tubular element designed for use with the MM-33A heater. It operates at 600V AC with a clear finish and features a 5-1/2 in pigtail connection and 5-1/2 in wire leads. The element has a horizontal burn mounting position and overall dimensions of 3/8 in diameter by 28-11/16 in length.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | No. 342/MM-33A |
| Brand | FOSTORIA |
| Color | Clear |
| Output | 2,500 W |
| Voltage | 600V AC |
| Includes | 5-1/2 in Wire Leads |
| For Use With | MM-33A |
| Product Type | Electric Infrared Tubular Heater Element |
| Connection Type | 5-1/2 in Pigtail |
| Heater Mounting Position | Horizontal Burn |
| Manufacturer Part Number | 631-25609 |
| Overall Dimensions - Dia. X L | 3/8 in x 28-11/16 in |
