Fostoria 3G-OTH-62986 — Technical Specifications

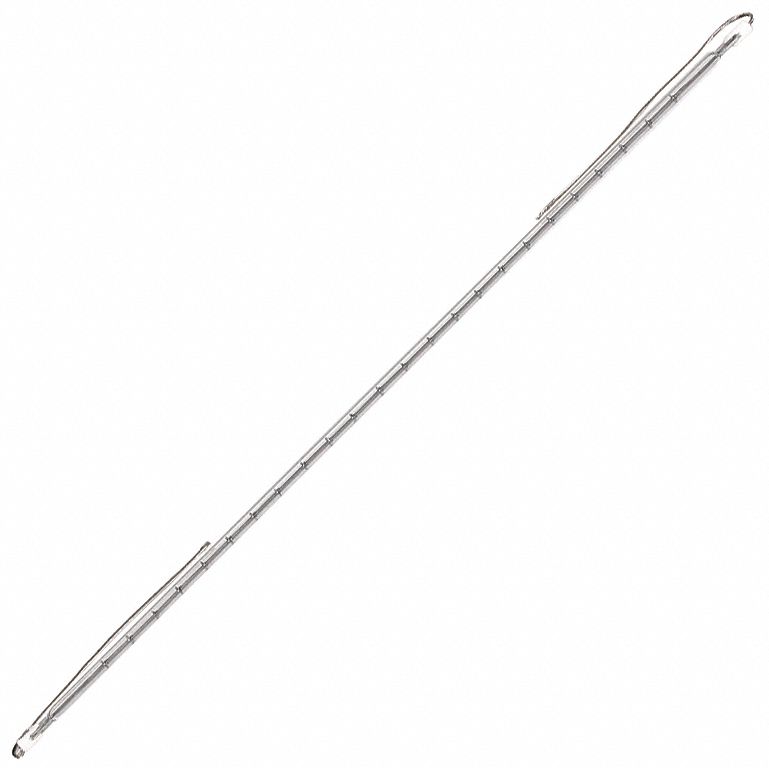

The FOSTORIA Electric Infrared Tubular Heater Element (MPN 630-38579) is a 3,800 W replacement element designed for use with the MM-46A heater. It operates at 600V AC, features a clear finish, and includes 5-1/2 in wire leads with a pigtail connection. The element measures 3/8 in diameter by 41-11/16 in length and is intended for horizontal burn mounting.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | No. 462/MM-46A |
| Brand | FOSTORIA |
| Color | Clear |
| Output | 3,800 W |
| Voltage | 600V AC |
| Includes | 5-1/2 in Wire Leads |
| For Use With | MM-46A |
| Product Type | Electric Infrared Tubular Heater Element |
| Connection Type | 5-1/2 in Pigtail |
| Heater Mounting Position | Horizontal Burn |
| Manufacturer Part Number | 630-38579 |
| Overall Dimensions - Dia. X L | 3/8 in x 41-11/16 in |
