Fostoria 3G-OTH-63315 — Technical Specifications

Name: Fostoria 3G-OTH-63315 FOSTORIA Electric Infrared Tubular Heater Element: For 343/Mfr. No. 342/MM-33A, 2,500 W Output, 9 A (MPN 630-25279). Key specifications — Connection Type: 5-1/2 in Pigtail; Color: Clear; Heater Mounting Position: Horizontal Burn; Product Type: Electric Infrared Tubular Heater Element; For Use With: 343; Voltage: 277V AC; Includes: 5-1/2 in Wire Leads; Brand: FOSTORIA.
Brand: Fostoria

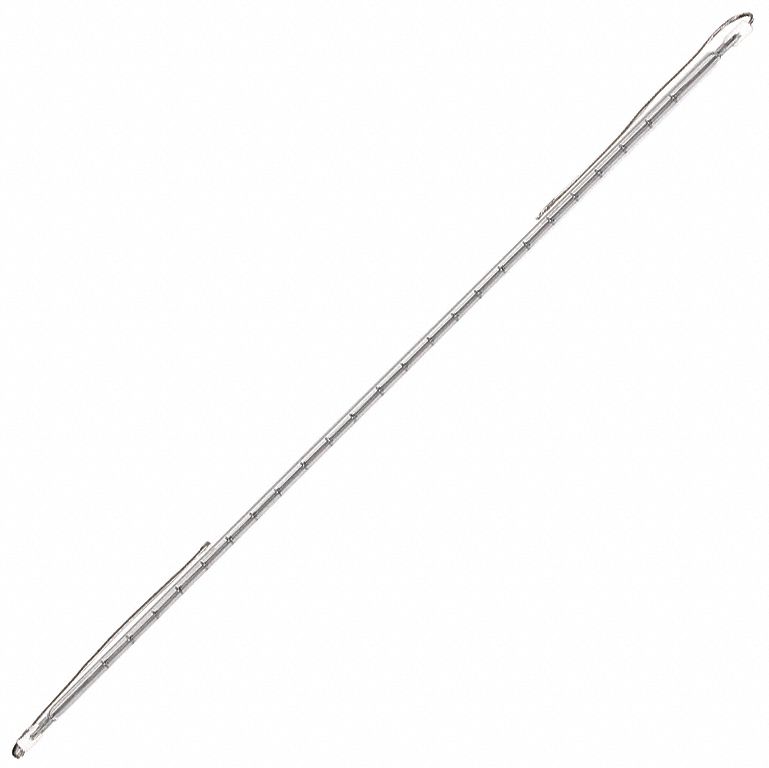

The FOSTORIA Electric Infrared Tubular Heater Element (SKU 29XR24) is a 277V AC tubular element designed for use with the 343 heater. It features a clear finish, 5-1/2 in pigtail connection, and 5-1/2 in wire leads, with overall dimensions of 3/8 in x 28-11/16 in. This element is rated for horizontal burn mounting position and delivers 2,500 W output at 9 A.

View Product & Quote

Technical Specifications

Parameter	Value
Type	No. 342/MM-33A, 9 A
Brand	FOSTORIA
Color	Clear
Output	2,500 W
Voltage	277V AC
Includes	5-1/2 in Wire Leads
For Use With	343
Product Type	Electric Infrared Tubular Heater Element
Connection Type	5-1/2 in Pigtail
Heater Mounting Position	Horizontal Burn
Manufacturer Part Number	630-25279
Overall Dimensions - Dia. X L	3/8 in x 28-11/16 in
