Fostoria 3G-OTH-63181 — Technical Specifications

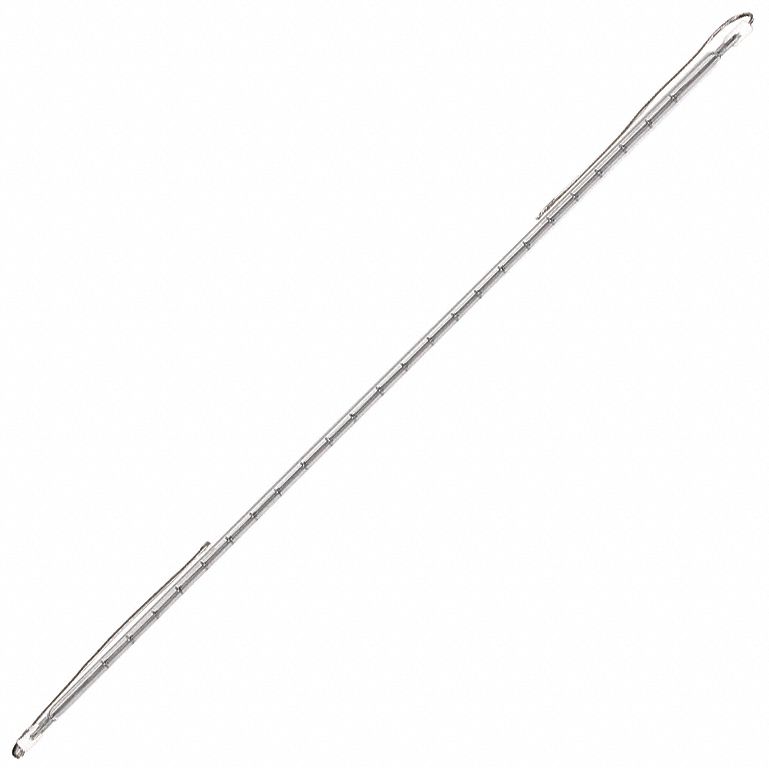

The FOSTORIA Electric Infrared Tubular Heater Element (MPN 630-2520) is a 2,500 W, 12 A, 208V AC replacement element designed for use with the MM-33A heater. It features a clear finish, a 5-1/2 in pigtail connection, and 5-1/2 in wire leads, with overall dimensions of 3/8 in diameter by 28-11/16 in length, and is intended for horizontal burn mounting.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | No. 342/MM-33A, 12 A |
| Brand | FOSTORIA |
| Color | Clear |
| Output | 2,500 W |
| Voltage | 208V AC |
| Includes | 5-1/2 in Wire Leads |
| For Use With | MM-33A |
| Product Type | Electric Infrared Tubular Heater Element |
| Connection Type | 5-1/2 in Pigtail |
| Heater Mounting Position | Horizontal Burn |
| Manufacturer Part Number | 630-2520 |
| Overall Dimensions - Dia. X L | 3/8 in x 28-11/16 in |
