Fostoria 3G-OTH-62943 — Technical Specifications

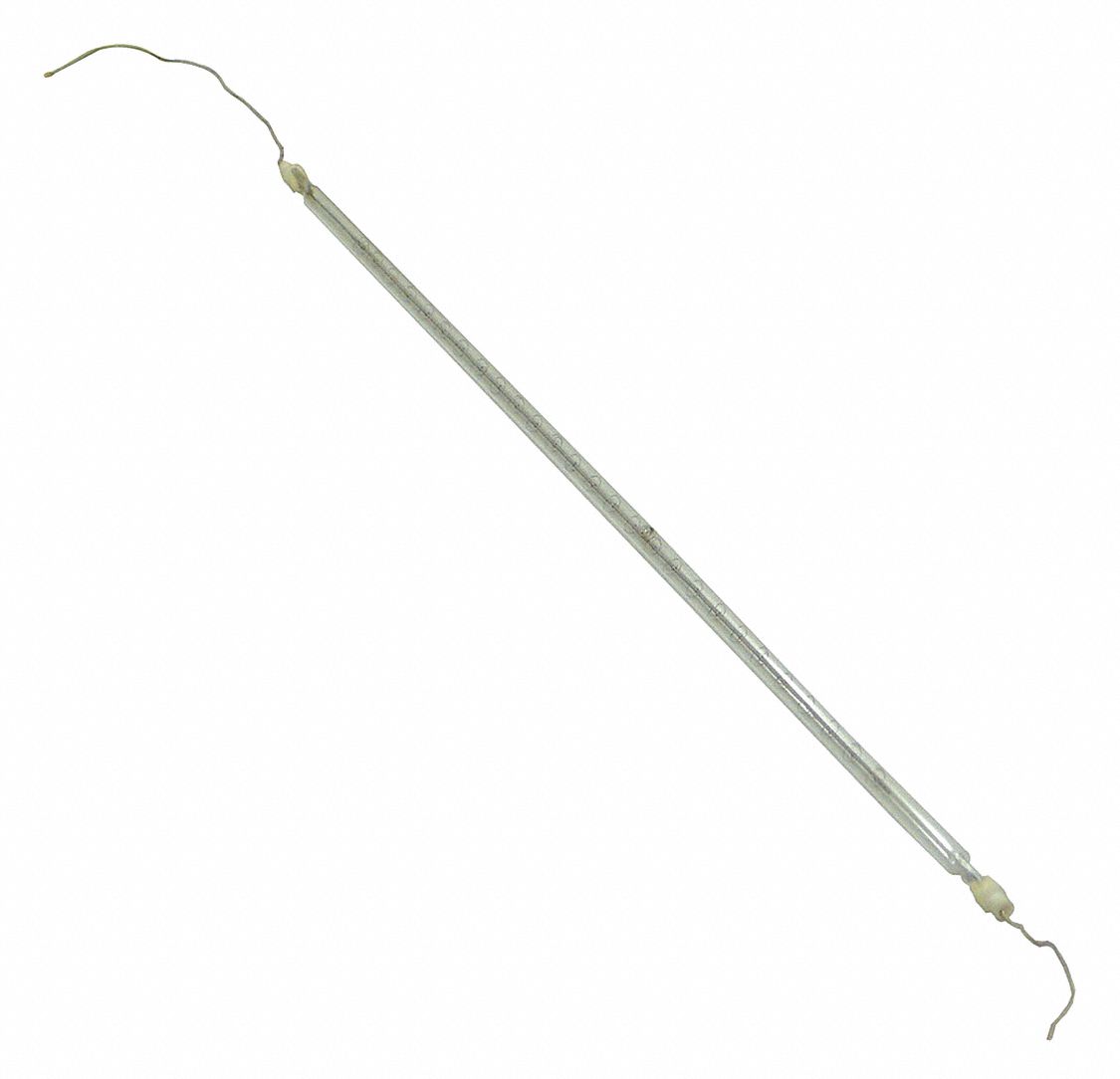

The FOSTORIA Electric Infrared Tubular Heater Element (MPN 630-16279) is a 1,600 W replacement element designed for use with the MM-24A heater. It operates at 277V AC with a clear finish and features a 5-1/2 in pigtail connection and 5-1/2 in wire leads. The element measures 3/8 in diameter by 19-11/16 in length and is intended for horizontal burn mounting.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | No. 222/MM-24A |
| Brand | FOSTORIA |
| Color | Clear |
| Output | 1,600 W |
| Voltage | 277V AC |
| Includes | 5-1/2 in Wire Leads |
| For Use With | MM-24A |
| Product Type | Electric Infrared Tubular Heater Element |
| Connection Type | 5-1/2 in Pigtail |
| Heater Mounting Position | Horizontal Burn |
| Manufacturer Part Number | 630-16279 |
| Overall Dimensions - Dia. X L | 3/8 in x 19-11/16 in |
