Fostoria 3G-OTH-63061 — Technical Specifications

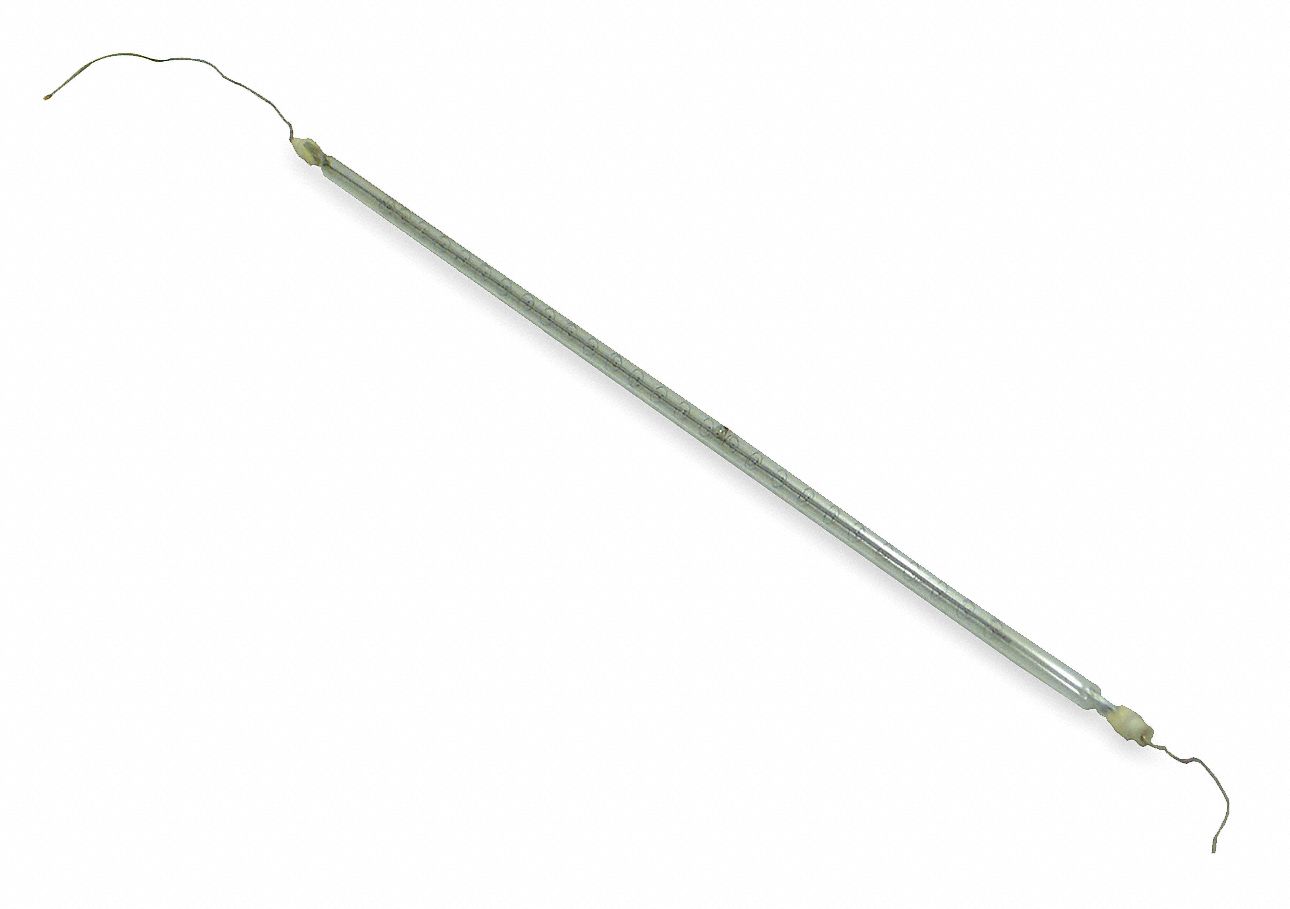

The FOSTORIA Electric Infrared Tubular Heater Element (MPN 630-36489) is a 480V AC tubular element designed for use with the MM-46A heater. It features a clear finish, a 3/8 in x 41-11/16 in overall diameter and length, a 5-1/2 in pigtail connection, and is rated for horizontal burn mounting. This replacement element includes 5-1/2 in wire leads and delivers 3,650 W output.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | No. 462/MM-46A |
| Brand | FOSTORIA |
| Color | Clear |
| Output | 3,650 W |
| Voltage | 480V AC |
| Includes | 5-1/2 in Wire Leads |
| For Use With | MM-46A |
| Product Type | Electric Infrared Tubular Heater Element |
| Connection Type | 5-1/2 in Pigtail |
| Heater Mounting Position | Horizontal Burn |
| Manufacturer Part Number | 630-36489 |
| Overall Dimensions - Dia. X L | 3/8 in x 41-11/16 in |
