Fostoria 3G-OTH-62706 — Technical Specifications

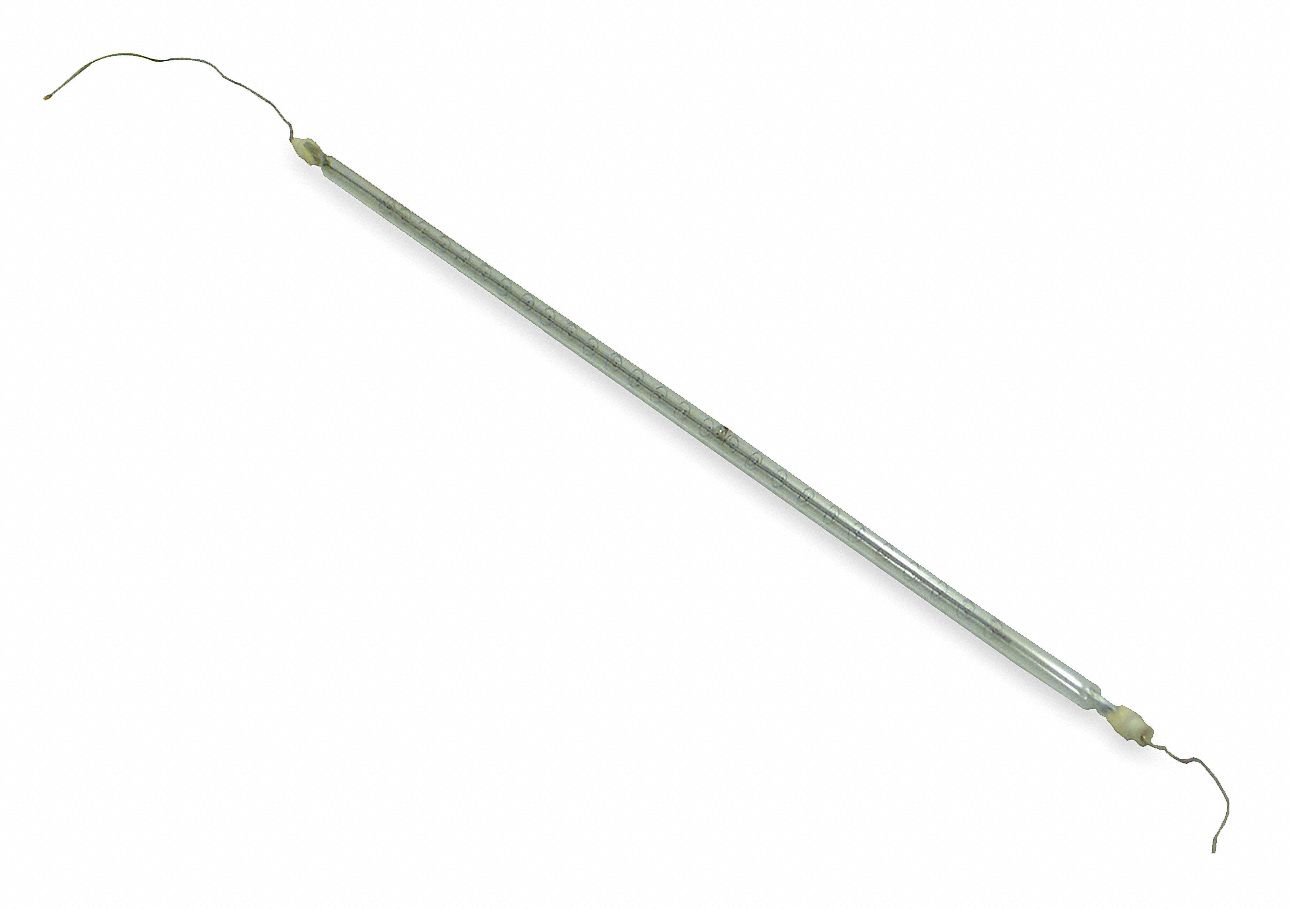

The FOSTORIA Electric Infrared Tubular Heater Element (MPN 630-16209) is a 208V AC tubular element designed for use with the MM-24A heater. It features a clear finish, a 5-1/2 in pigtail connection with 5-1/2 in wire leads, and a horizontal burn mounting position. The element measures 3/8 in diameter by 19-11/16 in length and delivers 1,600 W output.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | No. 222/MM-24A |
| Brand | FOSTORIA |
| Color | Clear |
| Output | 1,600 W |
| Voltage | 208V AC |
| Includes | 5-1/2 in Wire Leads |
| For Use With | MM-24A |
| Product Type | Electric Infrared Tubular Heater Element |
| Connection Type | 5-1/2 in Pigtail |
| Heater Mounting Position | Horizontal Burn |
| Manufacturer Part Number | 630-16209 |
| Overall Dimensions - Dia. X L | 3/8 in x 19-11/16 in |
