Fluke 3G-OTH-170080 — Technical Specifications

Name: Fluke 3G-OTH-170080 FLUKE Handheld Oscilloscope: Portable Handheld Digital Oscilloscopes, Fully Isolated, Auto, True RMS (MPN FLUKE-190-504/FPC). Key specifications — Power Source: Battery; IP Rating: IP51; Manufacturer Part Number: FLUKE-190-504/FPC; AC Magnitude Calculation: True RMS; Basic AC Voltage Accuracy: +/-(1.50% +10 Counts); Basic DC Voltage Accuracy: ±(1.50% +6 Counts); Brand: FLUKE; CAT Safety Rating: CAT IV 600V.
Brand: Fluke

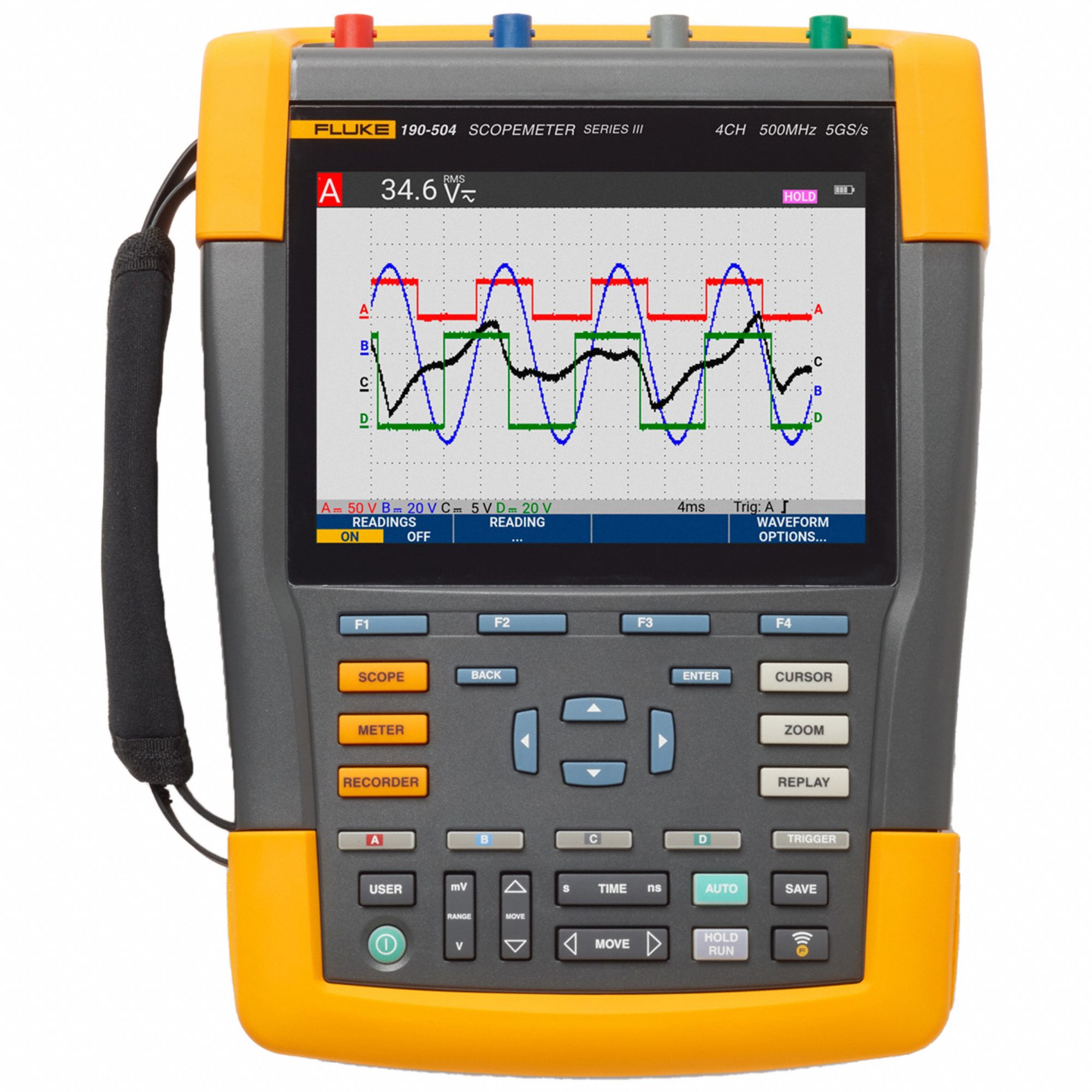

The FLUKE Portable Handheld Digital Oscilloscope (MPN FLUKE-190-504/FPC) is a battery-powered, handheld oscilloscope with an IP51 rating and a CAT IV 600V safety rating. It features a 125 MS/s sampling rate, 30,000 data points per channel memory depth, and True RMS AC magnitude calculation. The device offers fully isolated channels, auto triggering mode, and basic AC voltage accuracy of +/-(1.50% +10 counts) with basic DC voltage accuracy of ±(1.50% +6 counts).

View Product & Quote

Technical Specifications

Parameter	Value
Type	Fully Isolated, Auto, True RMS
Brand	FLUKE
Includes	AC Power Adapter
IP Rating	IP51
Interface	USB
Body Style	Handheld
Key Features	Data Logging
Memory Depth	30,000 Data Points Per Channel
Power Source	Battery
Product Type	Portable Handheld Digital Oscilloscopes
Sampling Rate	125 MS/s
Triggering Mode	Auto
CAT Safety Rating	CAT IV 600V
AC Magnitude Calculation	True RMS
Channel Source Isolation	Fully Isolated
Manufacturer Part Number	FLUKE-190-504/FPC
Basic AC Voltage Accuracy	+/-(1.50% +10 Counts)
Basic DC Voltage Accuracy	±(1.50% +6 Counts)
Digital Display Screen Type	LCD
Calibration Certificate Type	Not Included
