Fluke 3G-OTH-170075 — Technical Specifications

Name: Fluke 3G-OTH-170075 FLUKE Digital Oscilloscope: Portable Handheld Digital Oscilloscopes, Fully Isolated, Auto, True RMS (MPN FLUKE-190-104-III). Key specifications — Power Source: Battery; IP Rating: IP51; Manufacturer Part Number: FLUKE-190-104-III; AC Magnitude Calculation: True RMS; Basic AC Voltage Accuracy: +/-(1.50% +10 Counts); Basic DC Voltage Accuracy: ±(1.50% +6 Counts); Brand: FLUKE; CAT Safety Rating: CAT IV 600V.
Brand: Fluke

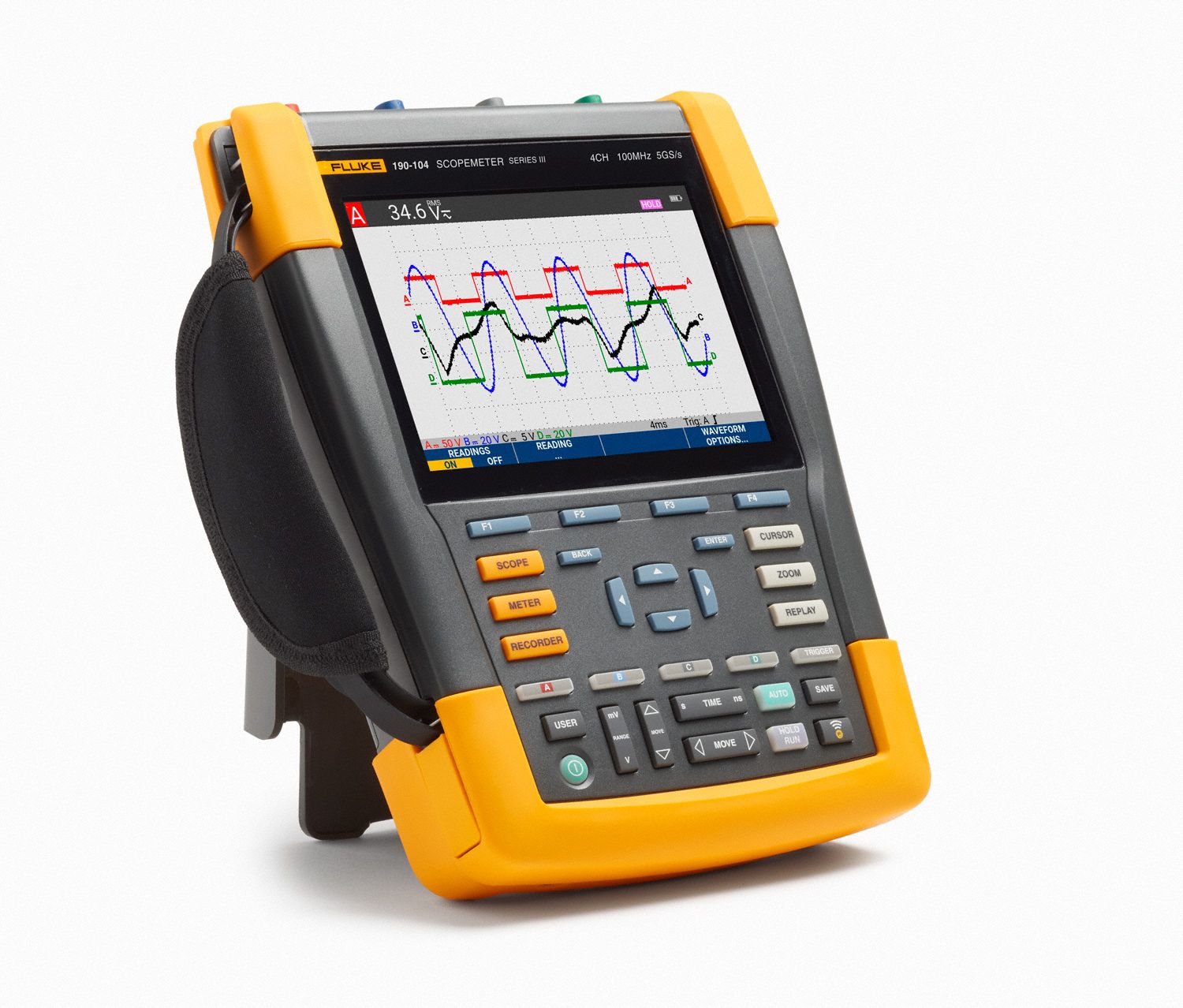

The FLUKE-190-104-III is a portable handheld digital oscilloscope from FLUKE, featuring a battery-powered design with an IP51 rating and a CAT IV 600V safety rating. It offers fully isolated channels, auto triggering mode, and True RMS AC magnitude calculation, with a sampling rate of 125 MS/s and a memory depth of 30,000 data points per channel. Basic AC voltage accuracy is +/-(1.50% +10 counts), and basic DC voltage accuracy is ±(1.50% +6 counts). The oscilloscope includes a DWA-131 Wi-Fi dongle and a USB interface, with a real-time clock and an LCD display.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Fully Isolated, Auto, True RMS
Brand	FLUKE
Includes	DWA-131 Wi-Fi Dongle
IP Rating	IP51
Interface	USB
Body Style	Handheld
Key Features	Real Time Clock
Memory Depth	30,000 Data Points Per Channel
Power Source	Battery
Product Type	Portable Handheld Digital Oscilloscopes
Sampling Rate	125 MS/s
Triggering Mode	Auto
CAT Safety Rating	CAT IV 600V
AC Magnitude Calculation	True RMS
Channel Source Isolation	Fully Isolated
Manufacturer Part Number	FLUKE-190-104-III
Basic AC Voltage Accuracy	+/-(1.50% +10 Counts)
Basic DC Voltage Accuracy	±(1.50% +6 Counts)
Digital Display Screen Type	LCD
Calibration Certificate Type	Not Included
