Flowserve 3G-OTH-95686 — Technical Specifications

Name: Flowserve 3G-OTH-95686 FLOWSERVE Mechanical Seal: Mechanical Shaft Seal, 31, 1 3/4 in Shaft Dia., 1.38 in Working Lg, 18-8 (MPN 31-175-28). Key specifications — Brand: FLOWSERVE; Gasket Material: Viton; Spring Material: 18-8; Spring Type: Single Spring; Ring Material: Silicon Carbide; Seal Type Designation: 31.
Brand: Flowserve

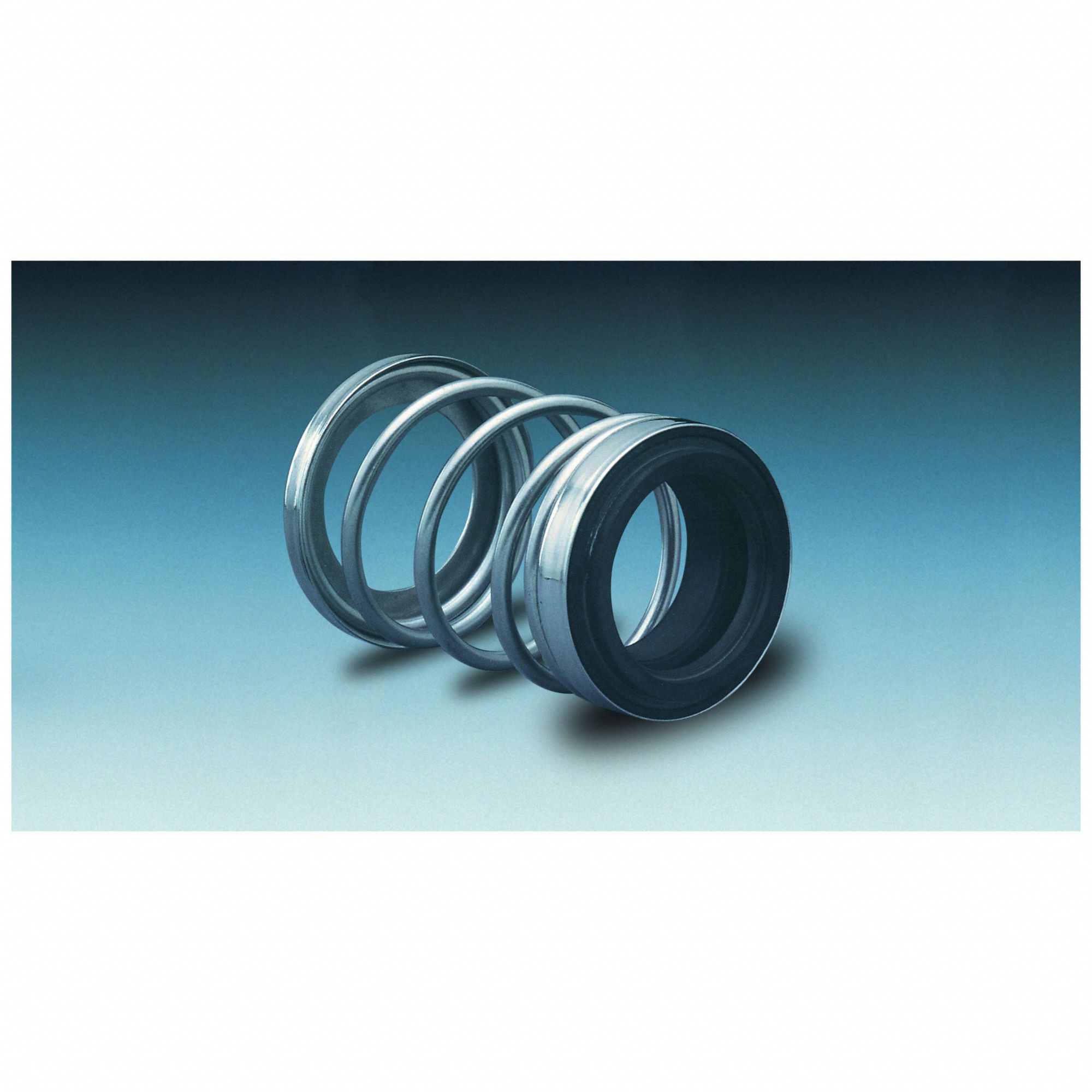

The FLOWSERVE Mechanical Shaft Seal, type 31 (MPN 31-175-28), is a single-spring mechanical seal with silicon carbide rings, a Viton gasket, and 18-8 spring material. It is designed for a 1 3/4 in shaft diameter with a 1.38 in working length.

View Product & Quote

Technical Specifications

Parameter	Value
Type	31, 18-8
Brand	FLOWSERVE
Shaft Dia.	1 3/4 in
Working Lg	1.38 in
Spring Type	Single Spring
Ring Material	Silicon Carbide
Gasket Material	Viton
Spring Material	18-8
Seal Type Designation	31
Manufacturer Part Number	31-175-28
