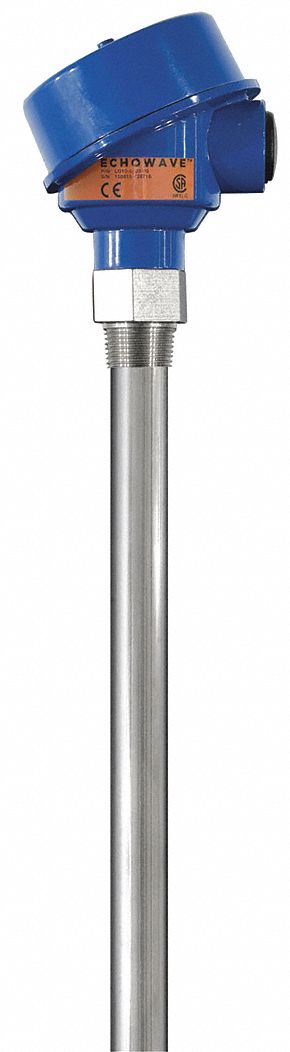

Flowline 3G-OTH-90642 — Technical Specifications
The FLOWLINE Coaxial Guided Wave Radar is a liquid level sensor transmitter with a coaxial probe type, offering an accuracy of +/-3 mm. It features an aluminum body, 316 stainless steel stem and probe, and a vertical mounting orientation. The device operates on 18/30V DC with a 4 to 20mA output voltage range and a 3-wire output configuration.
Technical Specifications
| Parameter | Value |
|---|---|
| NPT | 3/4 in |
| Type | Vertical, NPT |
| Brand | FLOWLINE |
| Accuracy | +/-3 mm |
| Probe Type | Coaxial |
| Body Material | Aluminum |
| Stem Material | 316 Stainless Steel |
| Probe Material | 316 Stainless Steel |
| Nameplate Voltage | 18/30V DC |
| Mounting Orientation | Vertical |
| Output Voltage Range | 4 to 20mA |
| Manufacturer Part Number | LG10-1003-01 |
| Output Wire Configuration | 3-Wire |
