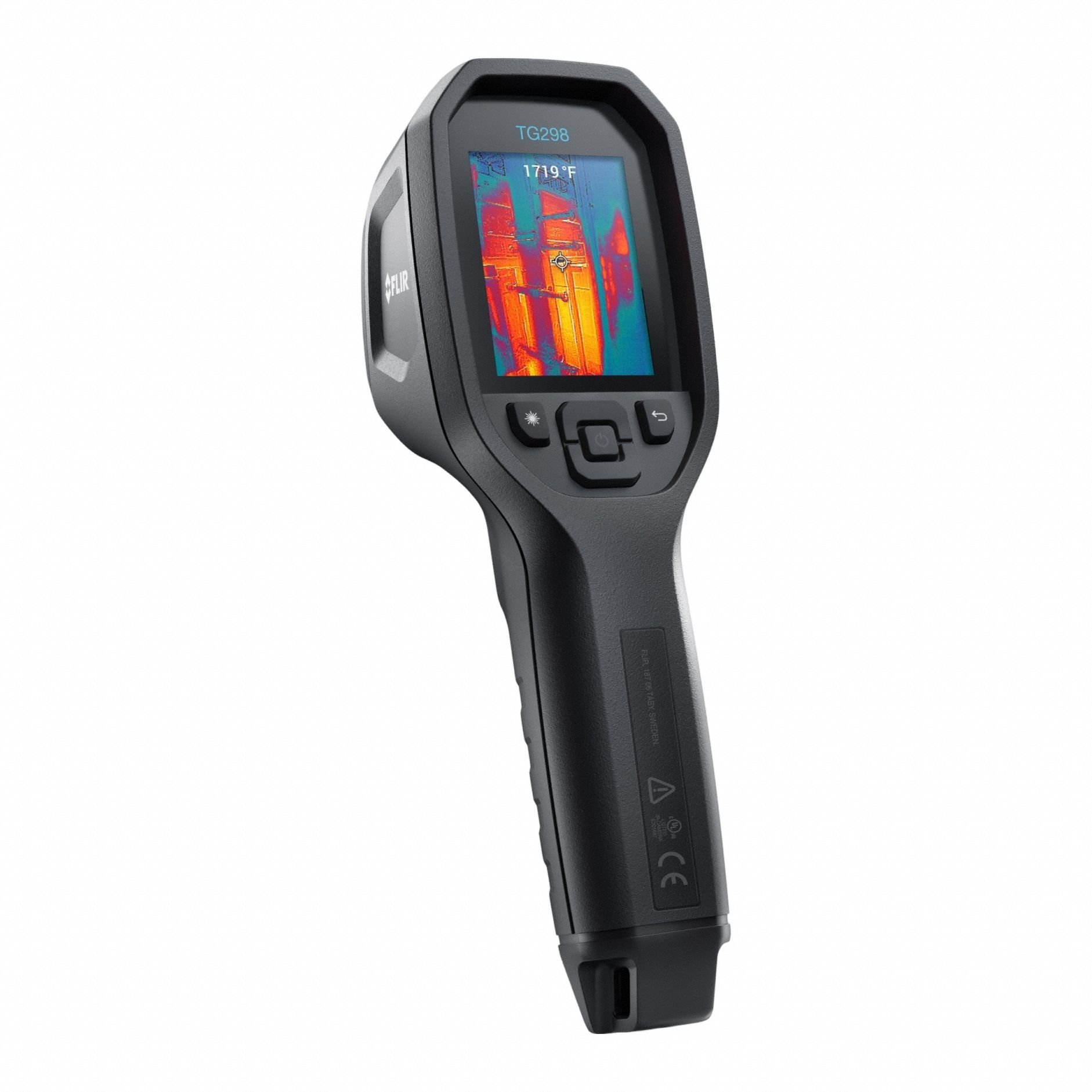

Flir 3G-OTH-178438 — Technical Specifications
The FLIR TG298 is an infrared thermometer with a thermal imager, featuring a 44° horizontal x 57° vertical field of view and a digital LCD touchscreen display. It measures temperatures from -13°F to over 1202°F with ±2.5% of reading accuracy and 0.1°F resolution, and includes a bright LED flashlight, work light, USB interface, and tripod mounting. The device supports difference testing, low-temperature alerts, data logging, and adjustable emissivity from 0.1 to 0.99, with RCM standards compliance.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Difference/Max Temp/Min Temp/Thermal Imaging, Adj @ 0.1 to 0.99 |
| Brand | FLIR |
| Features | Bright LED Flashlight |
| Standards | RCM |
| Alert Type | Digital Display |
| Accuracy °F | ±2.5% of Reading |
| Data Logging | Yes |
| Resolution °F | 0.1°F |
| Interface - NEW | USB |
| Max. Emissivity | 0.99 |
| Body Style - NEW | Full Size |
| Testing Functions | Difference |
| Temperature Alerts | Low Temperature |
| Mounting Style - NEW | Tripod |
| Intrinsic Safety - NEW | Not Specified Intrinsically Safe |
| Manufacturer Part Number | TG298 |
| Includes Work Light - NEW | Work Light Included |
| Max. Temperature Measured | Over 1202° F |
| Min. Temperature Measured | -13° |
| Digital Display Screen Type | LCD Touchscreen |
| Thermal Image Field Of View | 44° Horizontal x 57° Vertical |
| Calibration Certificate Type | Available Separately |
