Finish Thompson 3G-OTH-98266 — Technical Specifications

Name: Finish Thompson 3G-OTH-98266 FINISH THOMPSON Magnetic Drive Pump: PVDF, 1/4 hp Horsepower, Single Phase, PVDF, 115V AC, 1 in FNPT (MPN DB5V-T-M613). Key specifications — Gasket Material: Fluoroelastomer; Nameplate Voltage: 115V AC; Brand: FINISH THOMPSON.
Brand: Finish Thompson

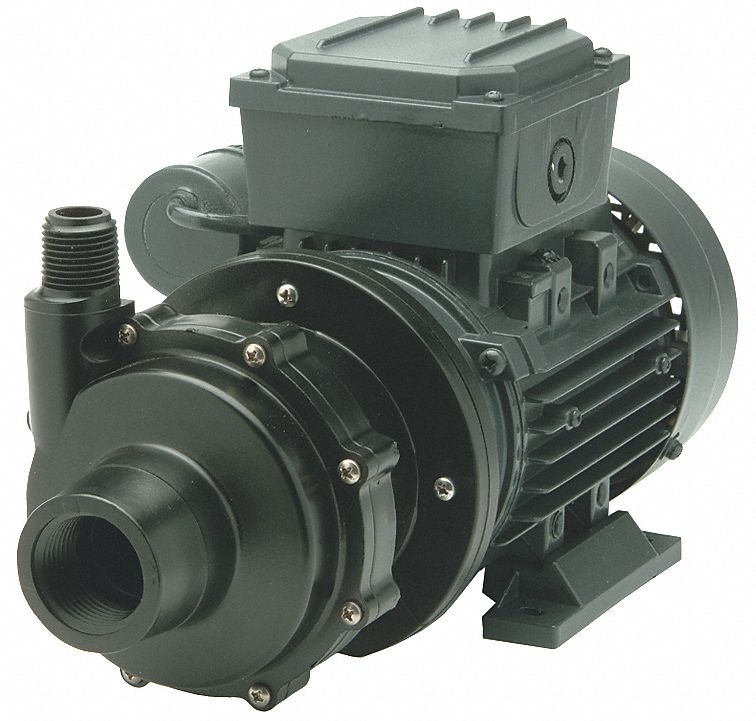

The FINISH THOMPSON Magnetic Drive Pump: PVDF is a magnetic-drive straight centrifugal pump with 1/4 hp horsepower, single phase, and a PVDF construction. It operates at 115V AC with a 1 in FNPT connection and features a fluoroelastomer gasket material. This model, MPN DB5V-T-M613, is designed for industrial fluid handling applications.

View Product & Quote

Technical Specifications

Parameter	Value
AC	115V
FNPT	1 in
Type	Single Phase, PVDF
Brand	FINISH THOMPSON
Horsepower	1/4 hp
Gasket Material	Fluoroelastomer
Nameplate Voltage	115V AC
Manufacturer Part Number	DB5V-T-M613
