Fantech 3G-OTH-79037 — Technical Specifications

Name: Fantech 3G-OTH-79037 In-Line Duct Fan: 327 cfm Max., 6 in Duct, 68 W, 120V AC, 1 Ph, IP44, Thermoplastic (MPN 45026). Key specifications — Includes: Mounting Bracket; Brand: FANTECH; Speed Controllable: Yes; High-Efficiency Motor: No; Housing Material: Thermoplastic; Nameplate Voltage: 120V AC; Number of Speeds: 1; Airflow @ 0.000 in SP - Range: 250 to 499 cfm.
Brand: Fantech

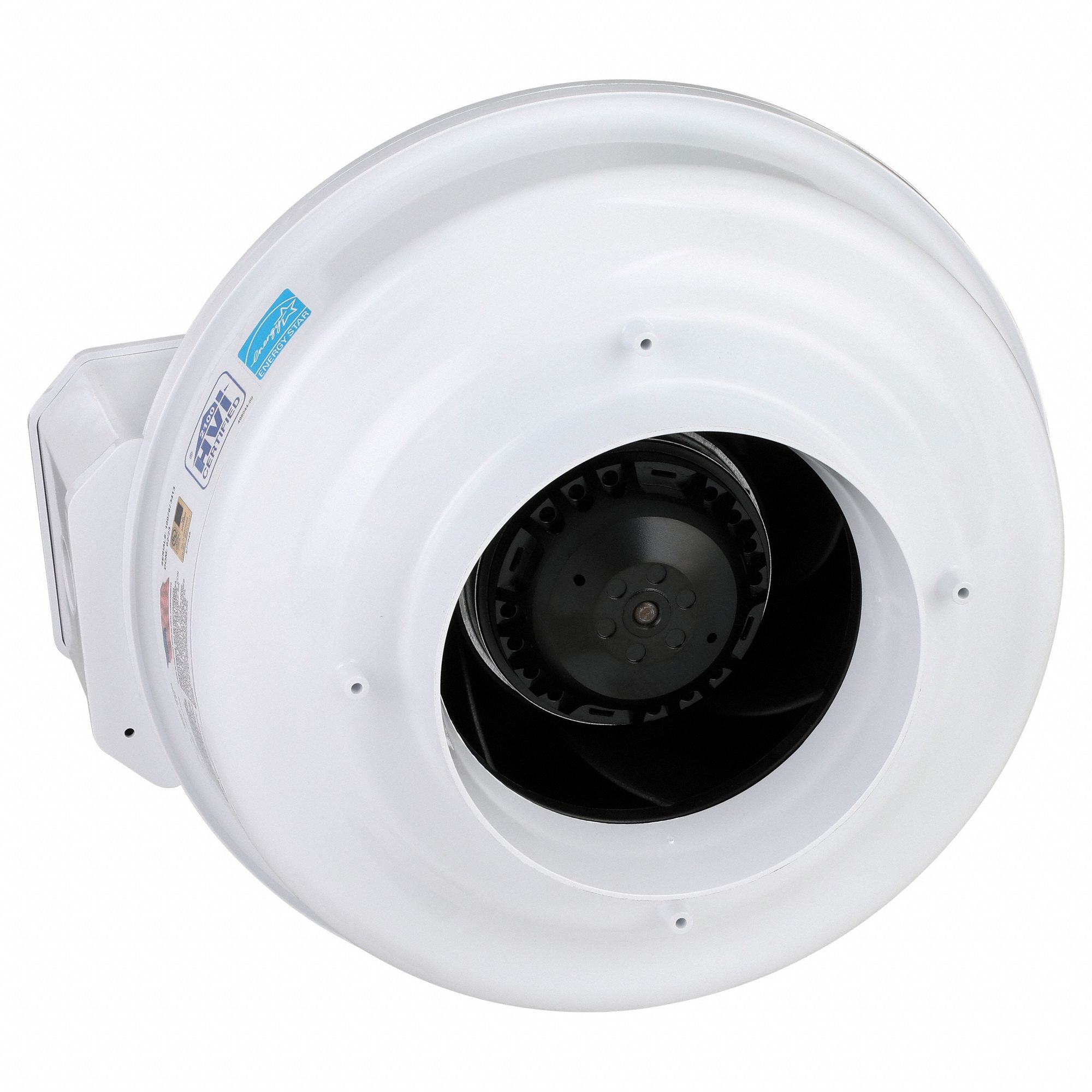

The FANTECH In-Line Duct Fan (SKU 5C517, MPN 45026) is a general-purpose inline duct fan with a thermoplastic housing and a maximum airflow of 327 cfm. It operates on a single speed at 120V AC, is speed controllable, and includes a mounting bracket. This standard-efficiency motor unit is rated IP44 and is designed for 6-inch ductwork.

View Product & Quote

Technical Specifications

Parameter	Value
AC	120V
Ph	1
Duct	6 in
Type	68 W, IP44, Thermoplastic
Brand	FANTECH
Includes	Mounting Bracket
Housing Material	Thermoplastic
Number Of Speeds	1
Nameplate Voltage	120V AC
Speed Controllable	Yes
High-Efficiency Motor	No
Manufacturer Part Number	45026
High-Efficiency Motor Broad	Standard-Efficiency Motor
Airflow @ 0.000 In SP - Range	250 to 499 cfm
