Ezo 3G-OTH-100726 — Technical Specifications

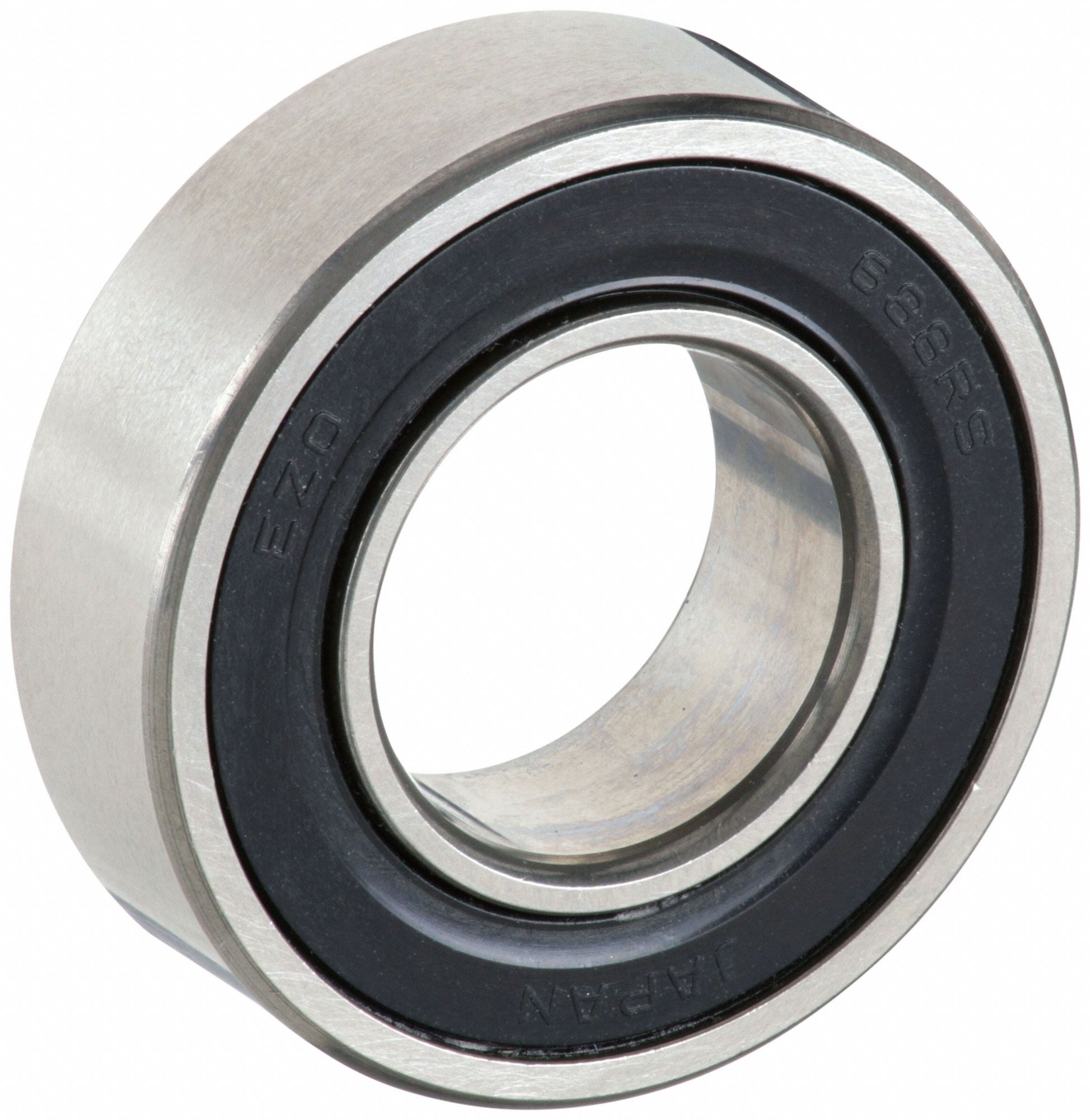

The EZO Miniature Ball Bearing 688 is a high-precision radial ball bearing with a metric system of measurement. It features a double contact seal (2RS), an 8 mm bore, 16 mm outer diameter, and 5 mm width, identified by bearing industry number 688 and manufacturer part number 688-2RSP6MC3SRL.
Technical Specifications
| Parameter | Value |
|---|---|
| OD | 16 mm |
| Wd | 5 mm |
| Bore | 8 mm |
| Type | Dbl Sealed, Contact Seal |
| System Of Measurement | Metric |
| Bearing Industry Number | 688 |
| Manufacturer Part Number | 688-2RSP6MC3SRL |
