Ezo 3G-OTH-108906 — Technical Specifications

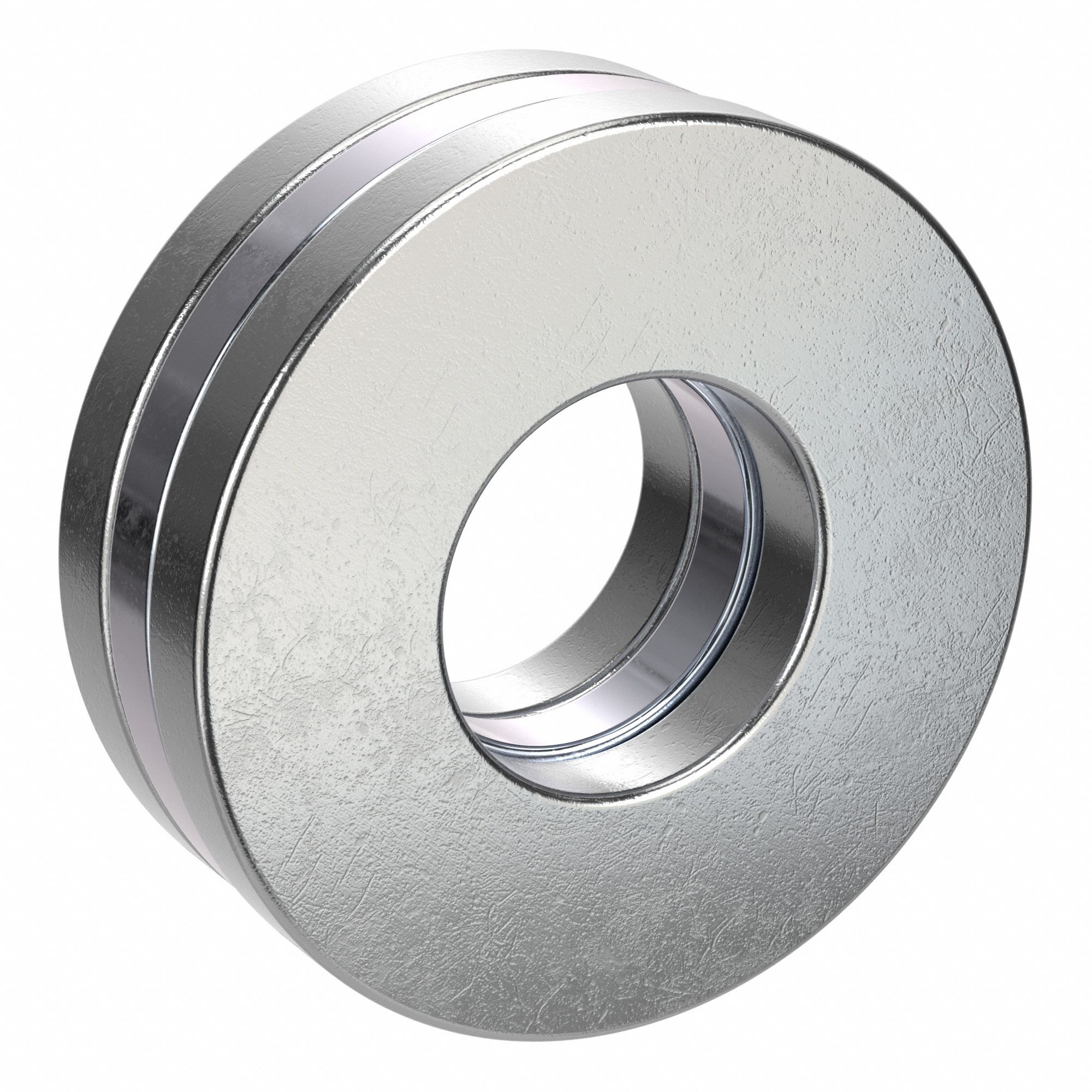

The EZO F6-12M is a separable grooved-race ball thrust bearing from the FM Series, featuring a 6 mm bore diameter, 12 mm outside diameter, and 4.5 mm overall width. It is constructed with SUJ2 steel balls and is rated for a maximum speed of 14,000 RPM with grease lubrication.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Grooved, Steel |
| Brand | EZO |
| Bore Dia | 6 mm |
| Overall Wd | 4.5 mm |
| Outside Dia | 12 mm |
| Maximum Speed | 14,000 RPM Grease |
| Bearing Series | FM Series |
| Ball Material Grade | SUJ2 |
| Thrust Bearing Type | Separable Ball Thrust Bearing |
| System Of Measurement | Metric |
| Bearing Industry Number | F6-12M |
| Manufacturer Part Number | F6-12M |
