Ezo 3G-OTH-98248 — Technical Specifications

Name: Ezo 3G-OTH-98248 EZO Miniature Ball Bearing: R4, Dbl Shield, 1/4 in Bore, 5/8 in OD, 0.196 in Wd, 302°F Max Temp (MPN SRW4ZZA3MC3SRL). Key specifications — System of Measurement: Inch; Bearing Industry Number: R4.
Brand: Ezo

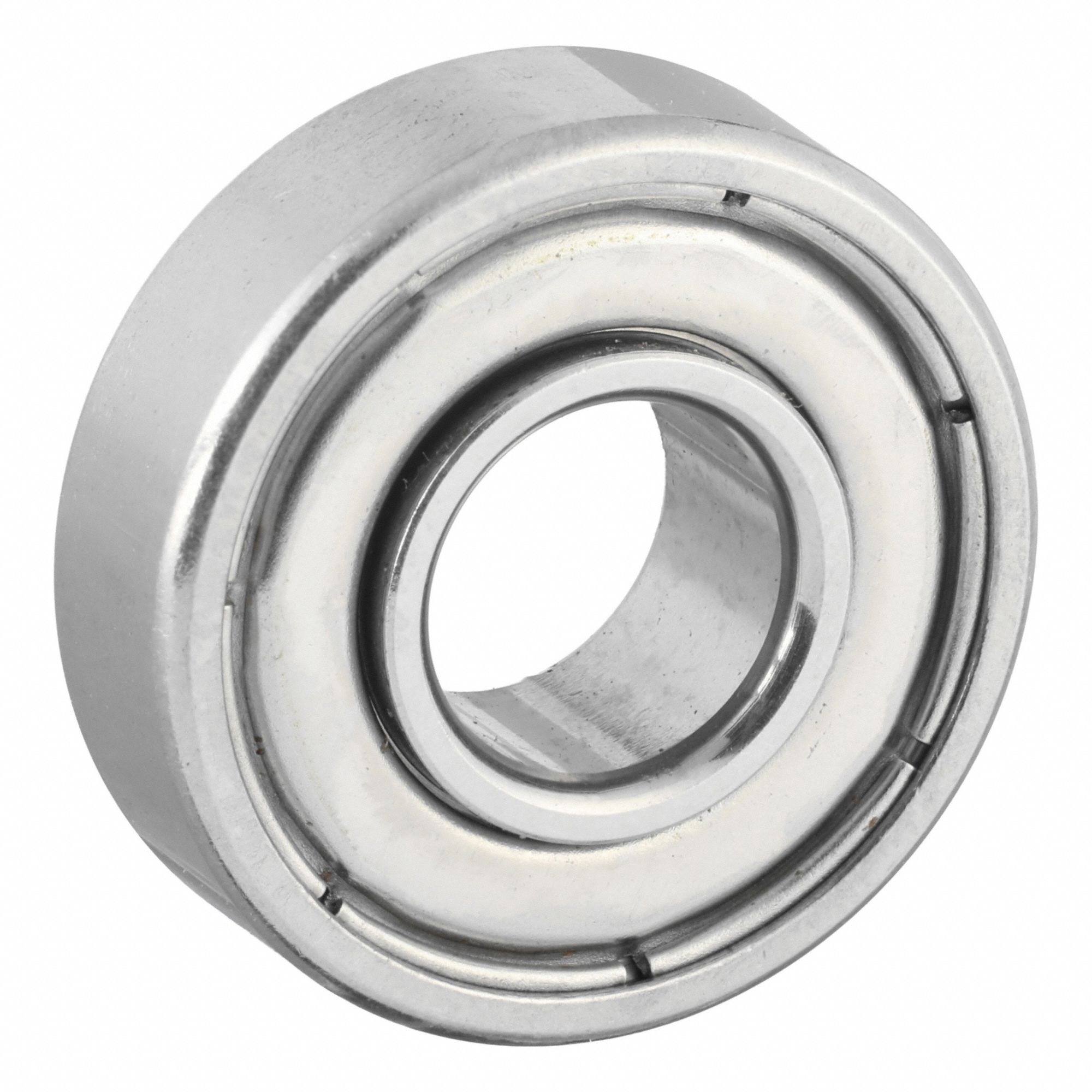

The EZO Miniature Ball Bearing: R4 is a high-precision extended inner ring radial ball bearing with an inch system of measurement. It features a double shield design, a 1/4-inch bore, a 5/8-inch outer diameter, and a 0.196-inch width, with a maximum operating temperature of 302°F. The bearing carries the industry number R4 and manufacturer part number SRW4ZZA3MC3SRL.

View Product & Quote

Technical Specifications

Parameter	Value
OD	5/8 in
Wd	0.196 in
Bore	1/4 in
Type	Dbl Shield
Max Temp	302°F
System Of Measurement	Inch
Bearing Industry Number	R4
Manufacturer Part Number	SRW4ZZA3MC3SRL
