Ezo 3G-OTH-105232 — Technical Specifications

Name: Ezo 3G-OTH-105232 EZO Miniature Ball Bearing: R2, Dbl Shield, 1/8 in Bore, 3/8 in OD, 0.156 in Wd, 302°F Max Temp (MPN SR2ZZA3MC3SRL). Key specifications — System of Measurement: Inch; Bearing Industry Number: R2.
Brand: Ezo

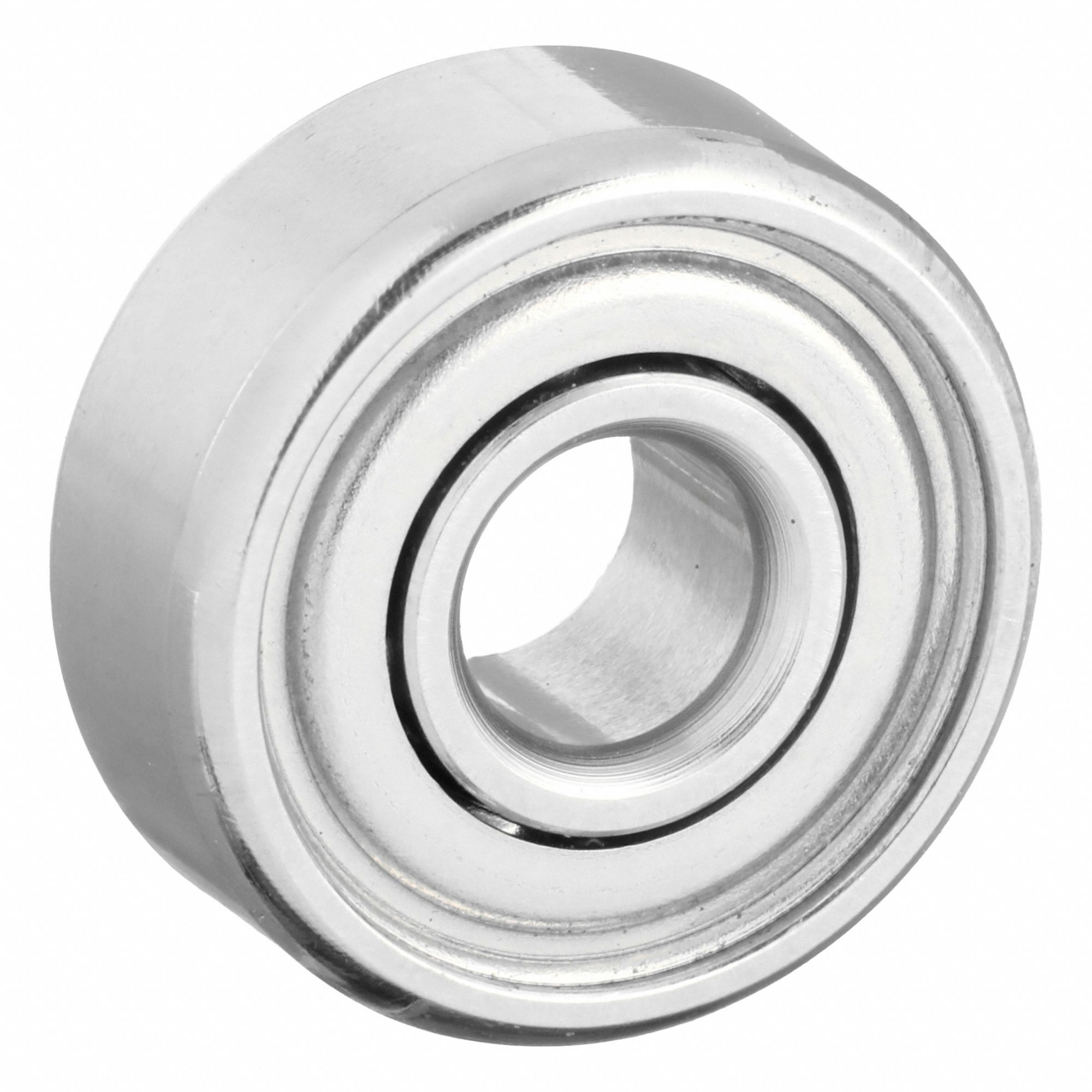

The EZO Miniature Ball Bearing R2 is a high-precision radial ball bearing from EZO, featuring a double-shielded design. It has a 1/8-inch bore, 3/8-inch outer diameter, and 0.156-inch width, with a maximum operating temperature of 302°F. This inch-system bearing carries the industry number R2 and manufacturer part number SR2ZZA3MC3SRL.

View Product & Quote

Technical Specifications

Parameter	Value
OD	3/8 in
Wd	0.156 in
Bore	1/8 in
Type	Dbl Shield
Max Temp	302°F
System Of Measurement	Inch
Bearing Industry Number	R2
Manufacturer Part Number	SR2ZZA3MC3SRL
