Ezo 3G-OTH-99302 — Technical Specifications

Name: Ezo 3G-OTH-99302 EZO Miniature Ball Bearing: R2-5, Dbl Shield, 1/8 in Bore, 5/16 in OD, 0.141 in Wd, 302°F Max Temp (MPN SR2-5ZZA3MC3SRL). Key specifications — System of Measurement: Inch; Bearing Industry Number: R2-5.
Brand: Ezo

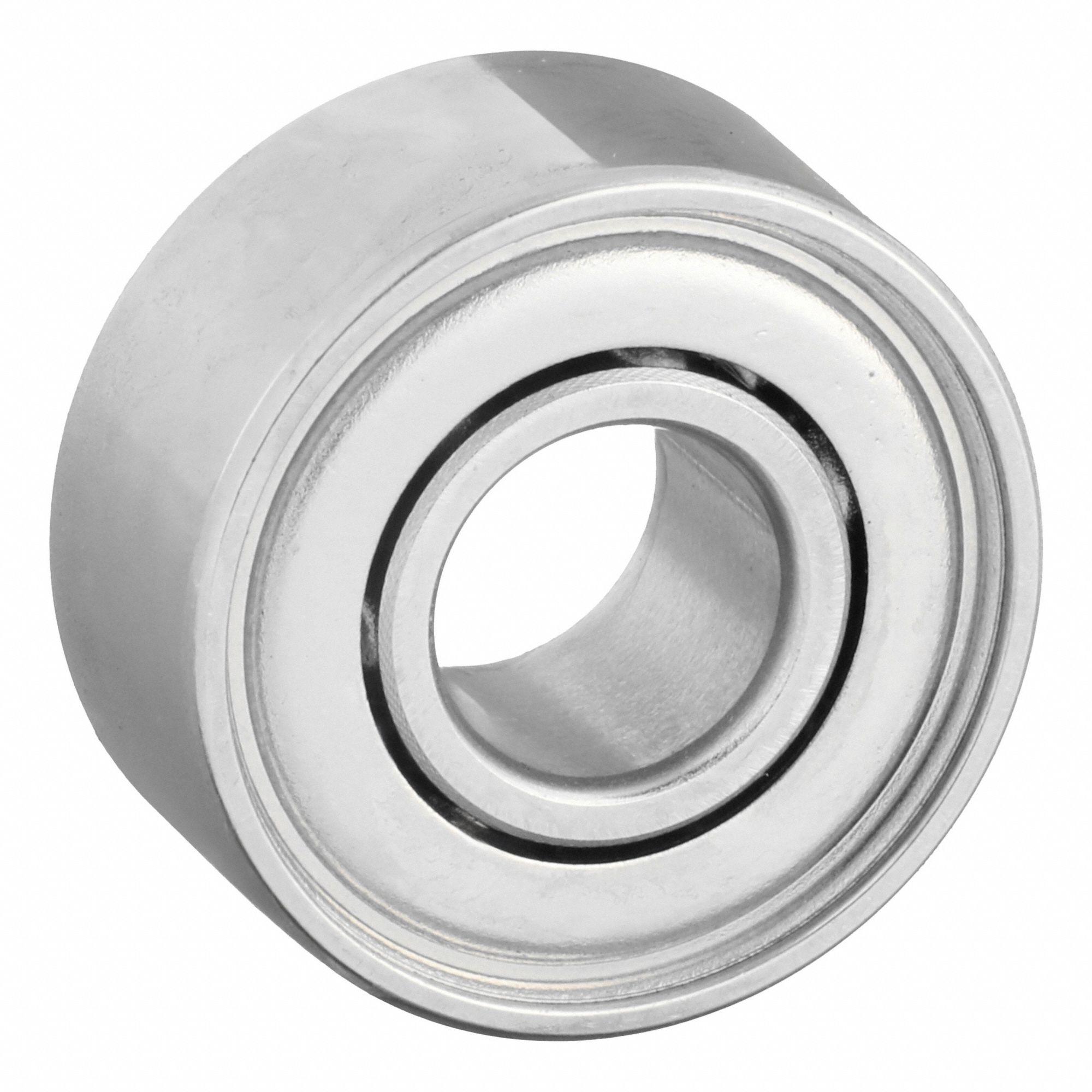

The EZO R2-5 is a high-precision radial ball bearing with an inch system of measurement, featuring a 1/8-inch bore, 5/16-inch outer diameter, and 0.141-inch width. It is double-shielded and rated for a maximum operating temperature of 302°F, with manufacturer part number SR2-5ZZA3MC3SRL.

View Product & Quote

Technical Specifications

Parameter	Value
OD	5/16 in
Wd	0.141 in
Bore	1/8 in
Type	Dbl Shield
Max Temp	302°F
System Of Measurement	Inch
Bearing Industry Number	R2-5
Manufacturer Part Number	SR2-5ZZA3MC3SRL
