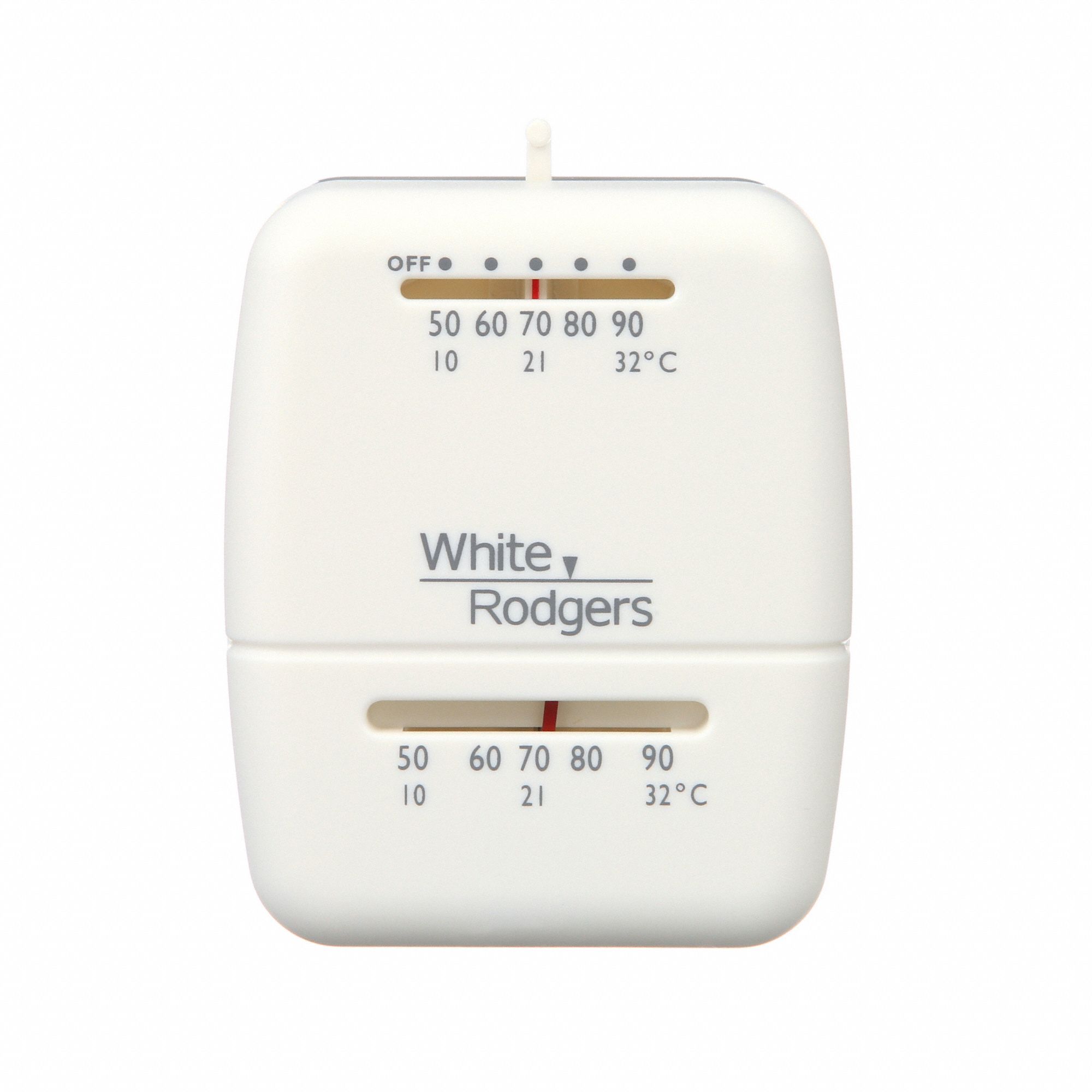

Emerson 3G-OTH-71009 — Technical Specifications

Name: Emerson 3G-OTH-71009 EMERSON Mechanical Cool Only Thermostat: Cool Only, R/Terminal Designations, No Fan Setting, On (MPN 01C21 101S1). Key specifications — Application: Cool Only; Temperature Differential: 2°F Heating, 4°F Cooling; Voltage: 30V AC; Terminal Designations: Y; System Settings: On; Temperature Control Range: 50° to 90°F; Shape: Rectangle; Brand: EMERSON.
Brand: Emerson

The EMERSON Mechanical Cool Only Thermostat is an analog thermostat designed for cool-only applications. It features a slide switch control type, operates at 30V AC, and has a temperature control range of 50° to 90°F with a 4°F cooling differential. The thermostat includes a Y terminal designation, no fan setting, and is mounted vertically in a rectangular shape.

View Product & Quote

Technical Specifications

Parameter	Value
Type	R/Terminal Designations, No Fan Setting, On
Brand	EMERSON
Shape	Rectangle
Voltage	30V AC
Digit Size	Standard
Application	Cool Only
Control Type	Slide Switch
Fan Settings	No Fan Setting
System Settings	On
Mounting Direction	Vertical
Terminal Designations	Y
Manufacturer Part Number	01C21 101S1
Temperature Differential	2°F Heating, 4°F Cooling
Temperature Control Range	50° to 90°F
