Emerson 3G-OTH-70876 — Technical Specifications

Name: Emerson 3G-OTH-70876 EMERSON Low Voltage Thermostat: Heat Only, RH/W, No Fan Setting, On-Off, On-Off/No Fan Setting (MPN 01C20 101S1). Key specifications — Application: Heat Only; Temperature Differential: 2°F Heating, 4°F Cooling; Voltage: 30V AC; Terminal Designations: RH; System Settings: On-Off; Temperature Control Range: 50° to 90°F; Shape: Rectangle; Brand: EMERSON.
Brand: Emerson

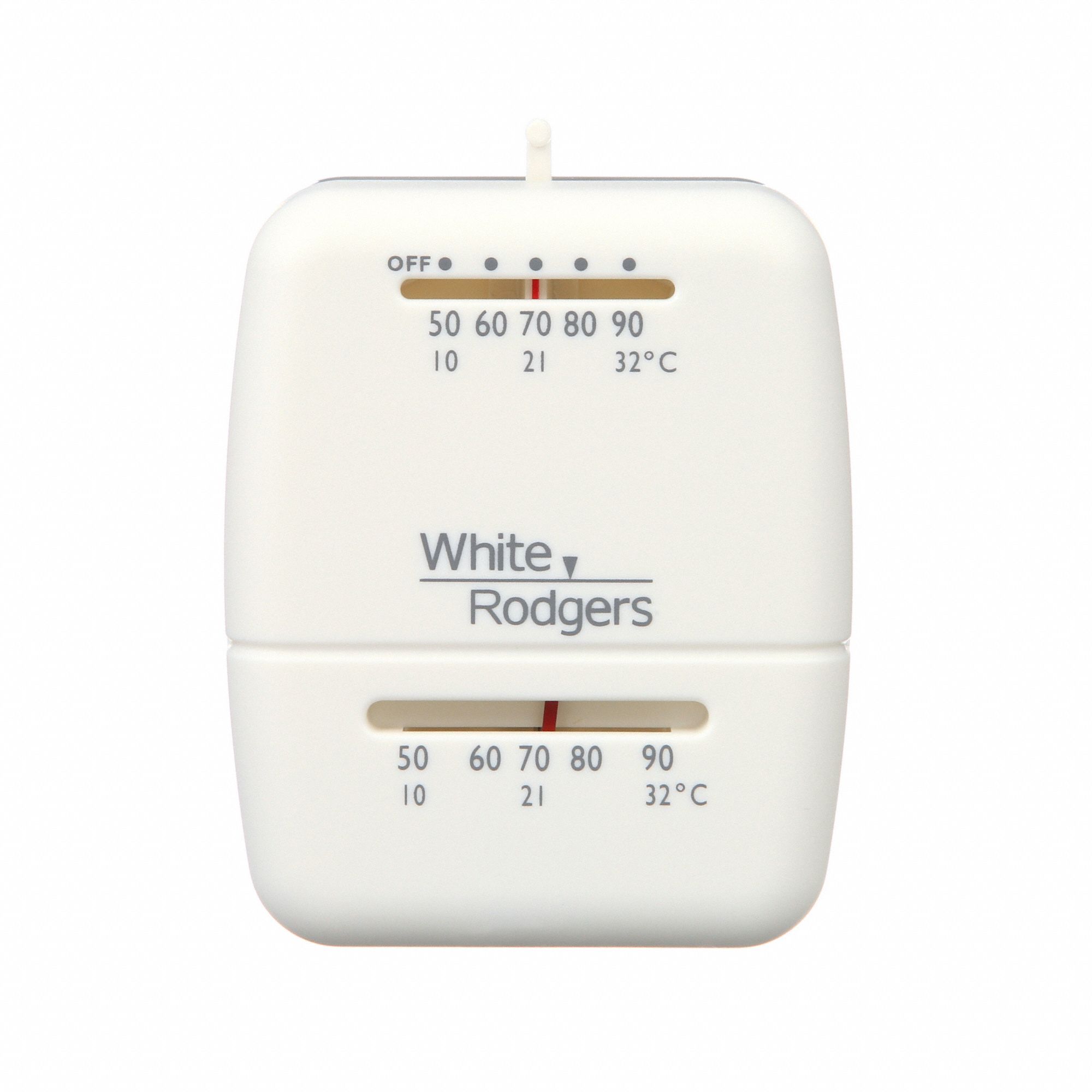

The EMERSON Low Voltage Thermostat: Heat Only is an analog thermostat designed for heat-only applications. It operates with a 30V AC supply and features an On-Off system setting controlled by a slide switch, with a temperature control range of 50° to 90°F and a heating differential of 2°F. The thermostat has a rectangular shape, mounts vertically, and uses RH terminal designations.

View Product & Quote

Technical Specifications

Parameter	Value
Type	RH/W, No Fan Setting, On-Off, On-Off/No Fan Setting
Brand	EMERSON
Shape	Rectangle
Voltage	30V AC
Digit Size	Standard
Application	Heat Only
Control Type	Slide Switch
Fan Settings	No Fan Setting
System Settings	On-Off
Mounting Direction	Vertical
Terminal Designations	RH
Manufacturer Part Number	01C20 101S1
Temperature Differential	2°F Heating, 4°F Cooling
Temperature Control Range	50° to 90°F
