Eaton Cutler Hammer 3G-OTH-42129 — Technical Specifications

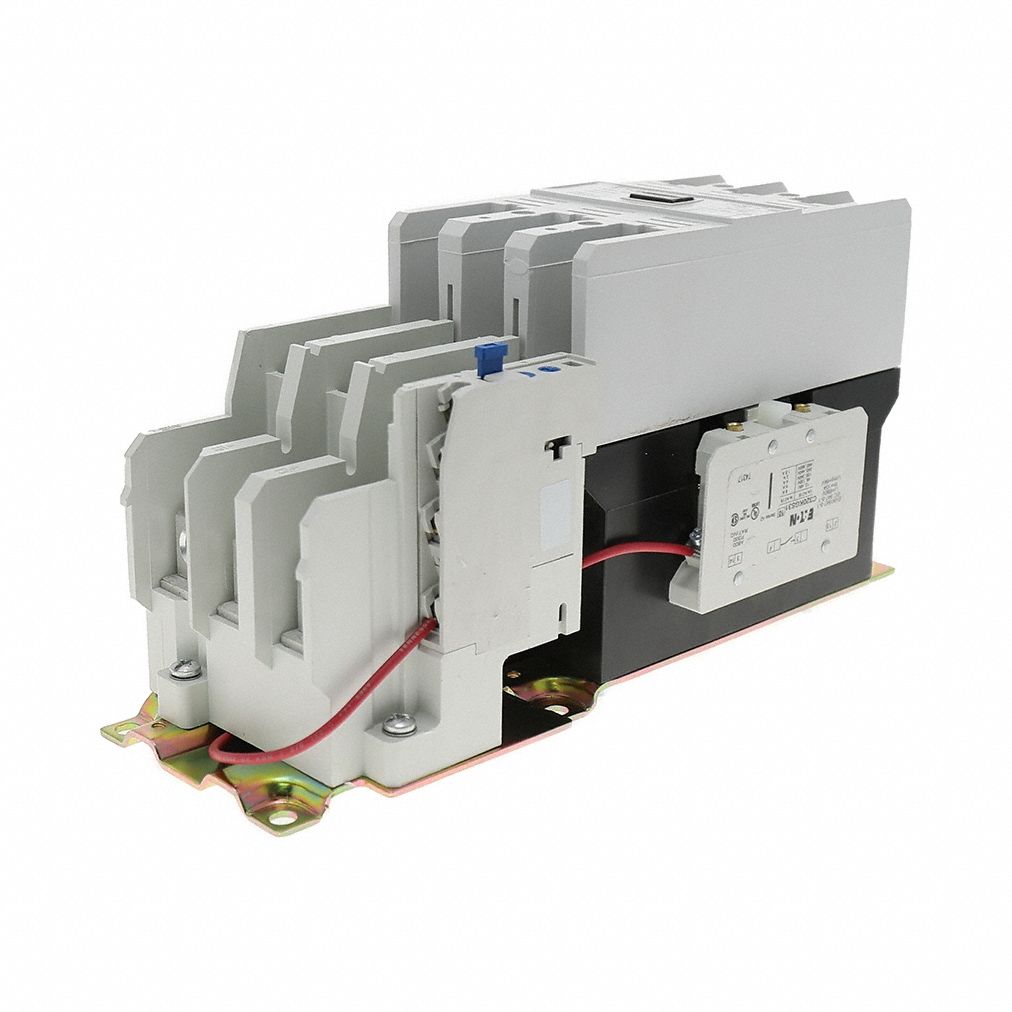

The EATON CUTLER HAMMER IEC Magnetic Motor Starter is a non-reversing starter with thermal overloads, three poles, NEMA Size 3, and a 90 A rating (MPN AN16KN0A). It operates on three-phase power with a 110/120V AC coil voltage and includes a pilot light and one normally open auxiliary contact. Three melting alloy thermal units are required but not included.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | NEMA Size 3, 90 A |
| Brand | EATON CUTLER HAMMER |
| Phase | Three |
| Poles | 3 |
| Operator | None |
| Coil Voltage | 110/120V AC |
| Operator Controls | None |
| Signaling Features | Pilot Light |
| Auxiliary Contact Form | 1NO |
| Thermal Units Required | 3 Melting Alloy Units (Not Included) |
| Manufacturer Part Number | AN16KN0A |
| Auxiliary Contacts Included | 1NO |
