Eaton 3G-OTH-22733 — Technical Specifications

Name: Eaton 3G-OTH-22733 EATON Surge Protection Device: Three Phase, 240V AC Delta, 3 Poles, 3 + Ground Wires, L-G/L-N/N-G (MPN AGDN24030R). Key specifications — Voltage: 240V AC Delta; Number of Wires: 3 Wires + Ground; Modes of Protection: L-N; Max. Continuing Operating Voltage: 240 V AC; Voltage Protection Rating: 1500V (L-L, L-G); Short Circuit Current Rating: 150 kA; Filtering: No; Includes: Alarm Contacts.
Brand: Eaton

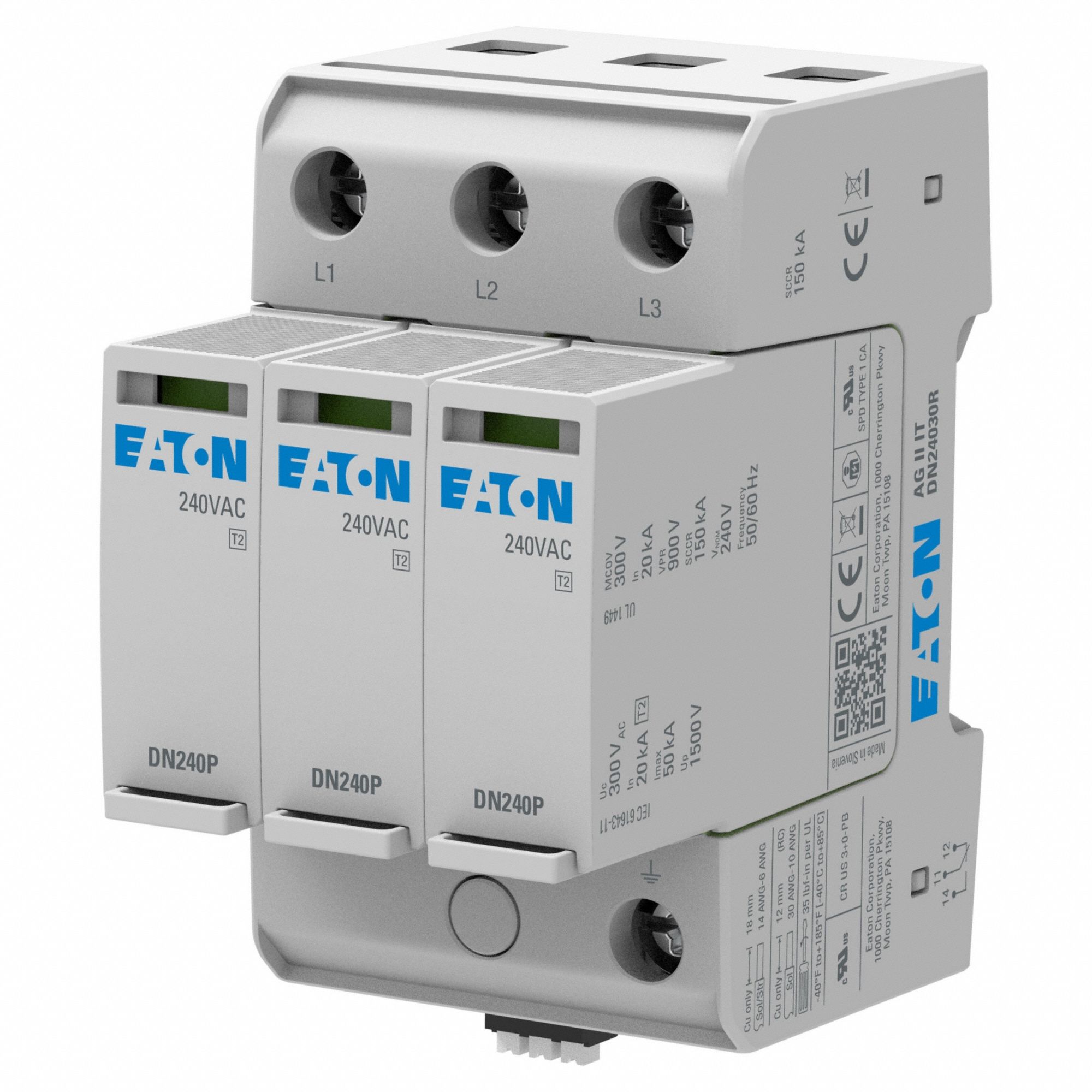

The EATON AGDN24030R is a three-phase DIN Rail internal-mount surge protective device (SPD) for 240V AC Delta systems. It features 3 wires plus ground, L-N protection modes, a voltage protection rating of 1500V (L-L, L-G), and a short circuit current rating of 150 kA. This unit includes alarm contacts and has a maximum continuous operating voltage of 240 V AC.

View Product & Quote

Technical Specifications

Parameter	Value
Type	3 + Ground Wires, L-G/L-N/N-G
Brand	EATON
Poles	3
Voltage	240V AC Delta
AC Delta	240V
Includes	Alarm Contacts
Filtering	No
Mounting Style	DIN-Rail
Number Of Wires	3 Wires + Ground
Modes Of Protection	L-N
Manufacturer Part Number	AGDN24030R
Voltage Protection Rating	1500V (L-L, L-G)
Short Circuit Current Rating	150 kA
Max. Continuing Operating Voltage	240 V AC
